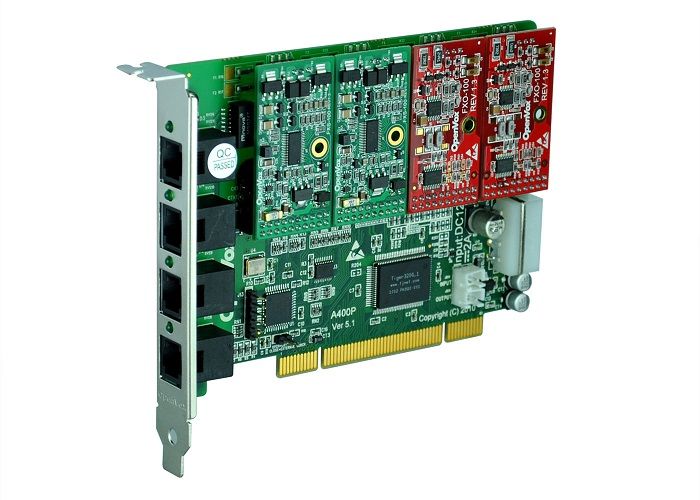

A400 Series

The OpenVox A400 Series can be used to connect analog phones and analog POTS lines via a PC. It supports combinations of FXS and/or FXO modules for a total of 4 lines.

The OpenVox A400 Series delivers excellent voice quality in telephony systems. With interchangeable FXS/FXO modules, it can eliminate the need for separate channel banks or access gateways.

The A400 Series contains 4 module banks. Each bank supports one analog interface. The module banks can be populated with up to 4 FXO or FXS modules, allowing any combination of ports to be created. Expanding an analog card solution is as simple as adding additional cards.

The A400 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects, as well as other open-source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target applications

Channel bank replacement / alternative

Home office (SOHO) applications

Small and medium-sized business (SMB) applications

Gateway termination to analog telephones/lines

Technical specifications

Up to 4 ports via a combination of FXS and FXO modules

4 RJ-11 interfaces on a single PCI bracket

Firmware accelerates I/O access for high stability

Minimum hardware requirements

Pentium III 800 MHz

128 MB RAM

Operating systems

Linux (all versions, releases and distributions from 1.0 onward)

Certifications

RoHS compliant

Certificates: FCC, CE
