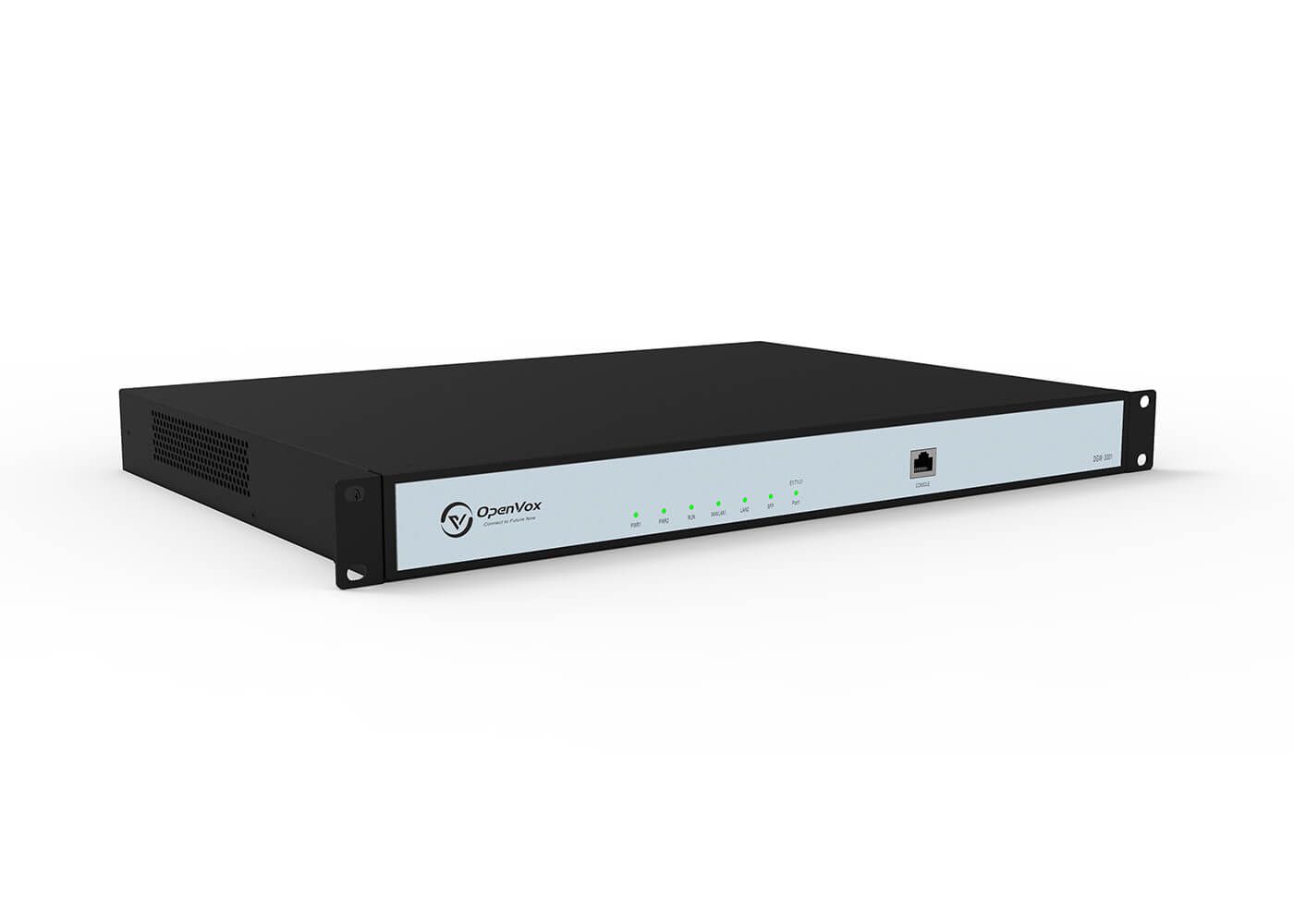

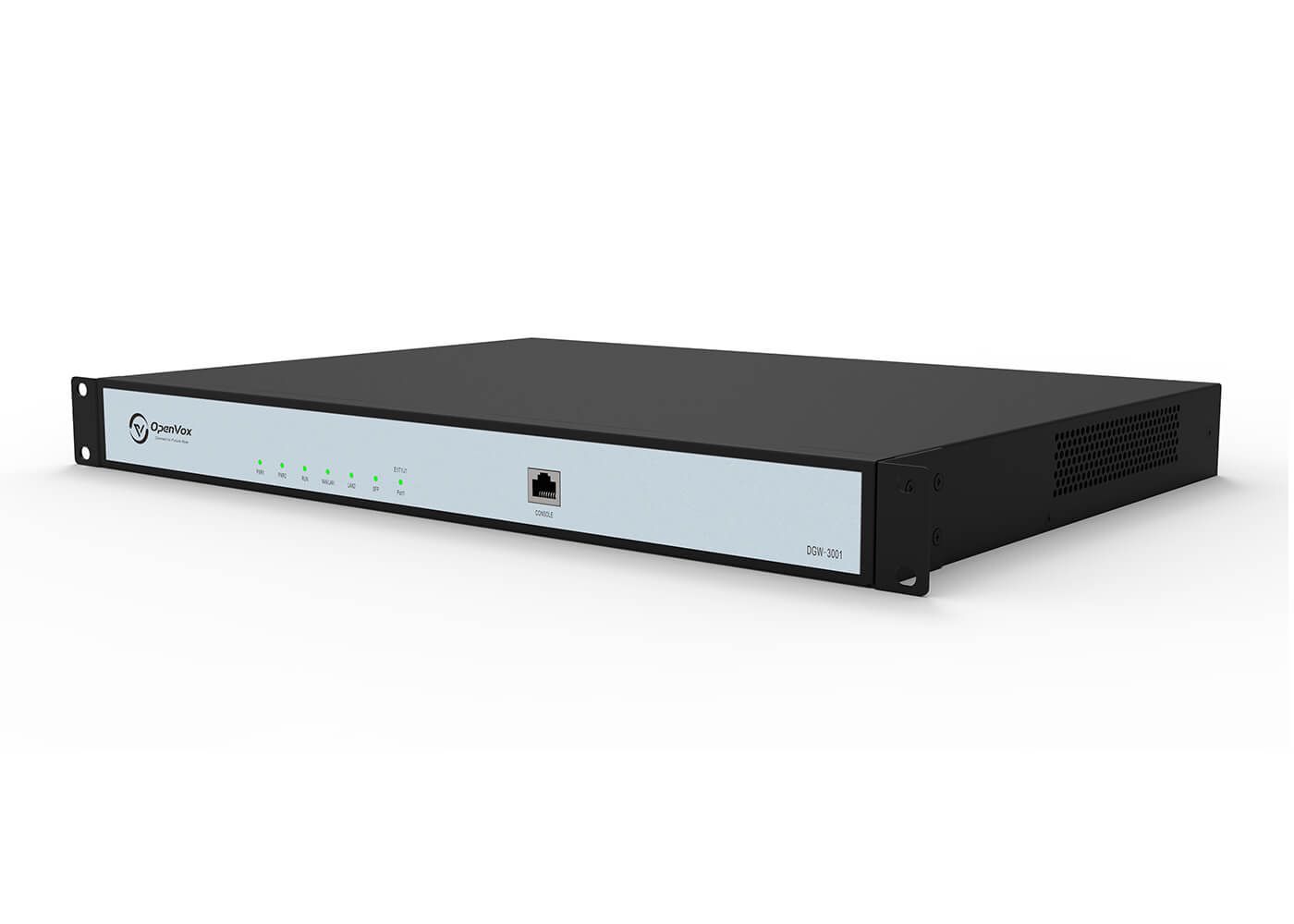

OpenVox DGW-3001 Series E1/T1/PRI VoIP Gateway
Supports 1 software-selectable T1/E1/PRI interface; supports 30 concurrent calls.
- DGW-3001Product model
- 1E1/T1 ports
- 1Failover ports
Product details
DGW-3001 is a digital VoIP voice gateway that supports E1/T1 digital trunk interfaces. It enables interconnection between traditional digital telephone lines (PSTN/ISDN) and VoIP networks, allowing seamless integration of legacy telephone networks with IP voice systems. The device provides an intuitive web-based graphical management interface, enabling users to configure, maintain, and customize services quickly. It also supports open API interfaces for secondary development and system integration.
DGW-3001 provides 1 software-configurable E1/T1 interface respectively. They support PRI, SS7, and R2 signaling, with maximum concurrent call capacities of 30 channels respectively, meeting the digital trunk access and VoIP interconnection requirements of deployments at different scales.
Key features

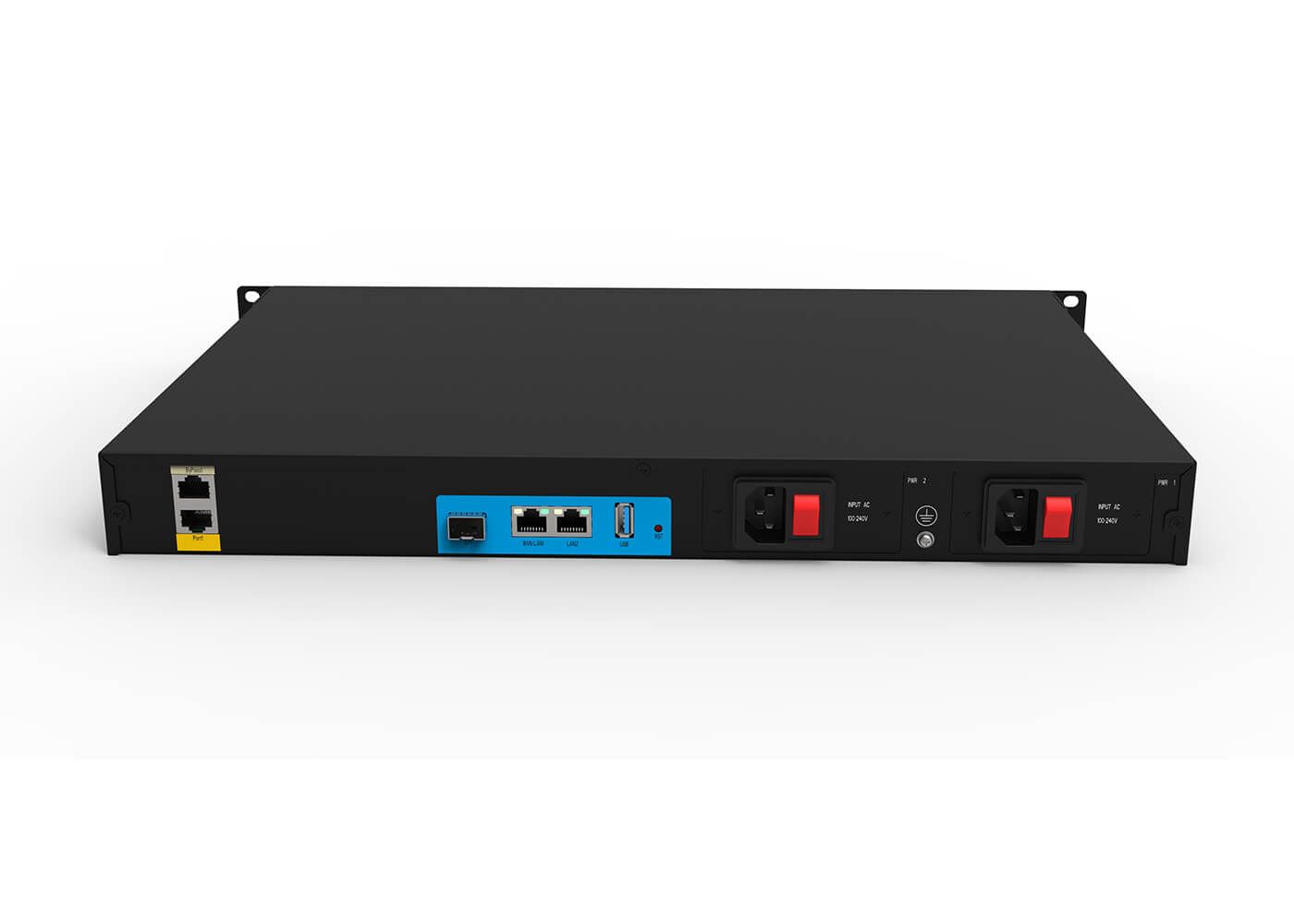

Physical interfaces
Capacity:
1 E1/T1 port
1 E1/T1 failover bypass port
1 RS232 console port (RJ45)
1 * USB
Dual power supply, optional DC or AC input
Ethernet interfaces:
1 * WAN/LAN1: 1000Mbps, RJ-45
1 * LAN2: 1000Mbps, RJ-45
1 * SFP: 1000Mbps
PSTN
ISDN PRI: 23B+D(T1), 30B+D(E1), NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig
Signal 7/SS7: ITU-T, ANSI, ITU-CHINA MTP1/MTP2/MTP3, ISUP
E1 framing type: DF, CRC-4, CRC_ITU
T1 framing type: 2-Frame Multi-frame (F12, D3/4) Extended Super-frame (F24, ESF)
Line codes: E1:HDB3 T1:B8ZS
Clock: local/remote clock source
System features
E1/T1/PRI, supporting up to 30 concurrent calls
Signaling: PRI/R2/SS7
Supports up to 24 standard R2 signaling countries
Simple and convenient configuration via Web GUI
Supported protocols: SIP, TCP, UDP, RTP, SSH, HTTP, HTTPS
NTP time synchronization supported
SSH access for background management, Asterisk CLI command operation
Open API for all functions
Port group management supported
Custom dial plans supported
Firmware update via HTTP
Call statistics supported
Automatic provisioning supported
Dynamic channel status display supported
Configuration file backup and download supported
Multiple detailed log outputs
Scheduled reboot supported
Supports Asterisk, Issabel, 3CX, FreeSWITCH, VOS, and BroadSoft IPPBX platforms
Voice & FAX
G.711A/U, G.723.1, G.729A, iLBC, OPUS, AMR and AMR-WB
Comfort noise generation (CNG)
Adaptive (Dynamic) jitter buffer
Programmable gain control
DTMF mode: SIP INFO/RFC4733/INBAND
T.38/Pass-through
Network Features
Network type: static IP, DHCP
IPv4/IPv6 UDP/TCP, DHCP, TFTP, SCP
HTTP/HTTPS/SSH
Ping and traceroute support via Web GUI
Web-based network capture supported
MGT and IP alias support
Layer 2 and Layer 3 QoS
Fast DNS SRV switching
Network topology hiding with Loopback
Cloud-based management
SNMP
Routing
Flexible routing settings
Supports up to 512 routing rules
Supports caller/called party manipulation and filtering
Supports adding, modifying, and deleting routes
E1/T1 port grouping
VoIP protocol
SIP v2.0 (UDP/TCP), RFC3261
SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 SIP TLS/ SRTP
RTP/RTCP, RFC2198, 1889
SIP-T, RFC3372, RFC3204, RFC3398
SIP trunk working mode: Peer/Access
SIP/IMS registration: Up to 2000 SIP accounts
NAT: Dynamic NAT, Rport
Specifications
| Specification | Value |
|---|---|
| Product model | DGW-3001 |
| E1/T1 ports | 1 |
| Failover ports | 1 |
| Concurrent calls | 30 |
| Weight | 5.2kg |
| Console | 1 * RS232 (RJ45) |
| Ethernet port | 2 * 1000Mbps RJ45 ; 1 * 1000Mbps SFP |
| Dimensions | 440mm*318mm*44.4mm |
| Redundant power supply | Supported by default |
| Maximum power consumption | 15W |
| Input voltage (AC power supply) | 100 V ~ 240 V AC |
| Input voltage (DC power supply) | -48 V ~ -60 V DC |
| Operating temperature | 0°C ~ 50°C |
| Operating humidity range | 10% ~ 90% non-condensing |
| Storage temperature range | -20°C ~ 70°C |
| Certification | CE |
