OpenVox DGW-L302 Series E1/T1/PRI VoIP Gateway
Supports 2 software-selectable T1/E1/PRI interfaces; supports 60 concurrent calls.
- 2 /E1/T1 ports
- 60 /Concurrent calls
- 2 * 1000Mbps portsEthernet port
Product details

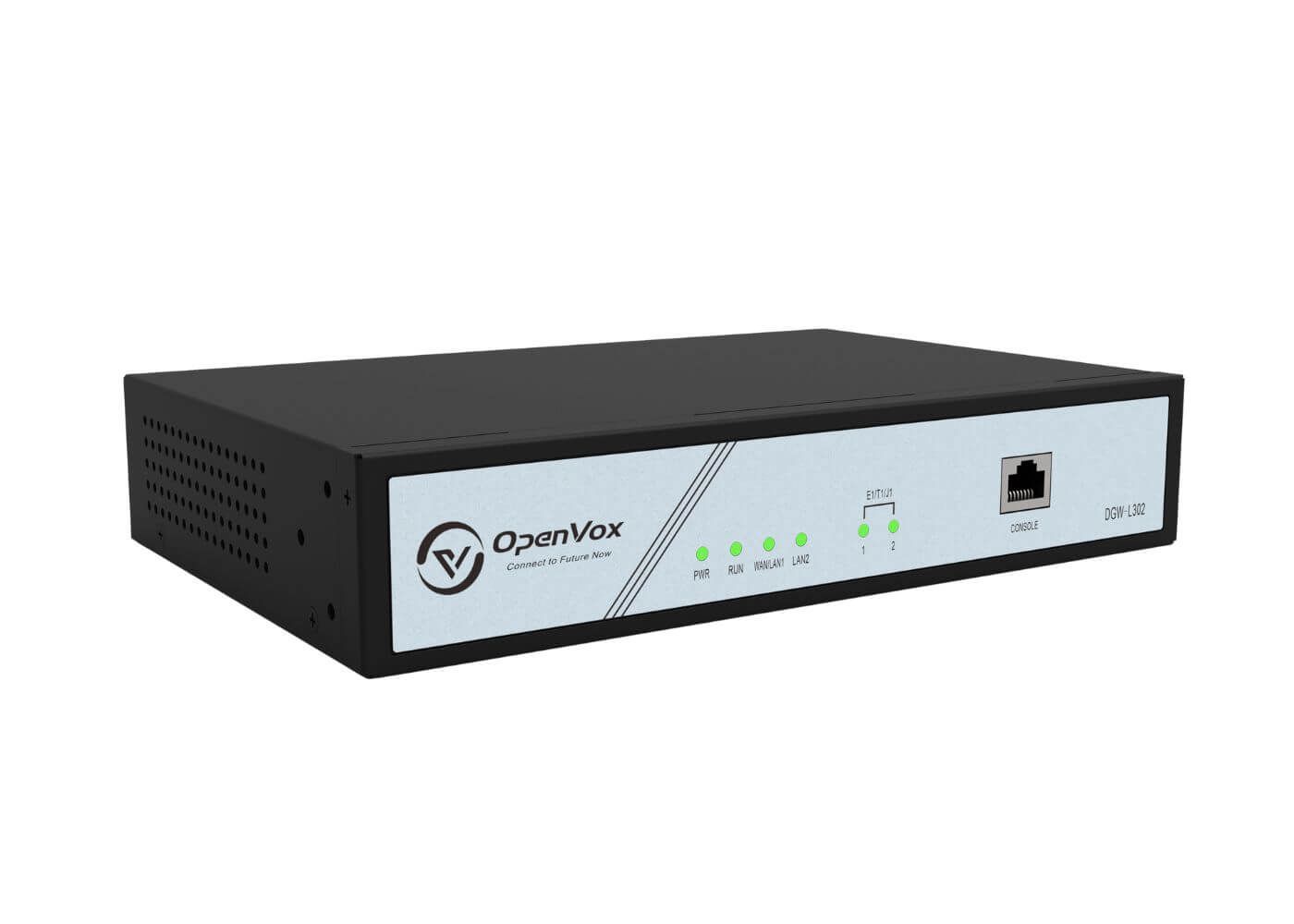

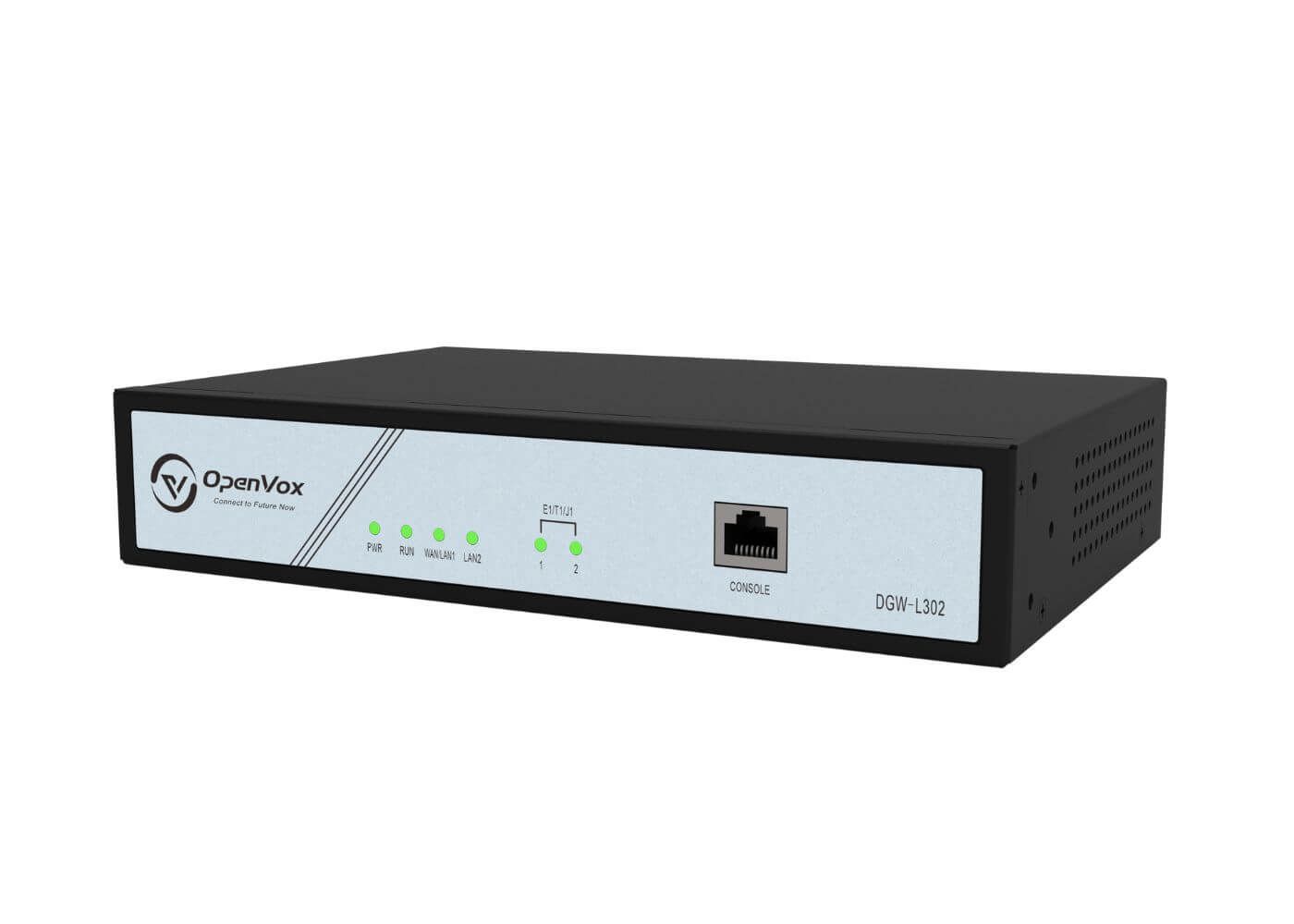

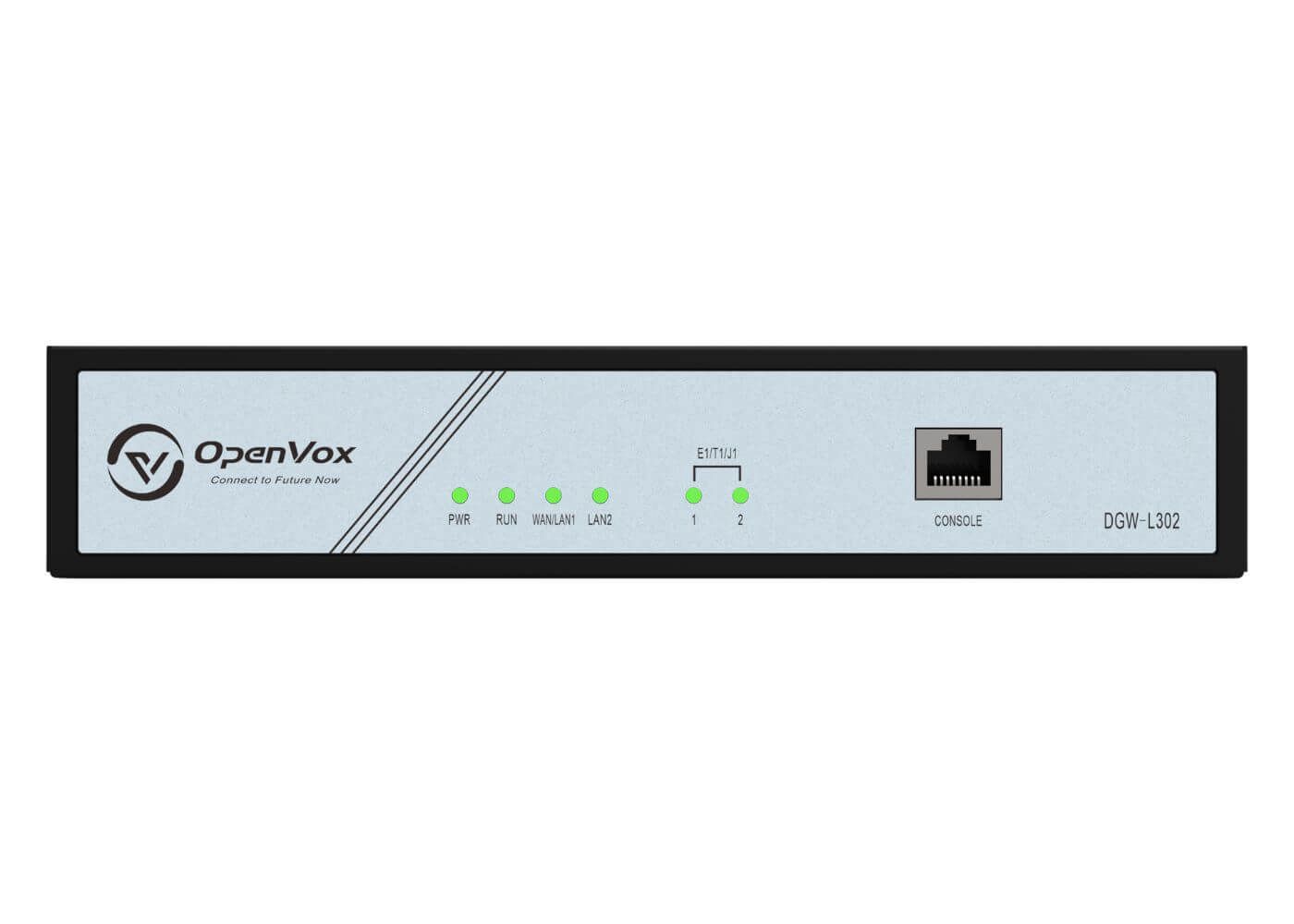

The OpenVox DGW-L302 is a digital VoIP gateway equipped with E1/T1 interfaces, designed to connect traditional digital telephone lines (PSTN and ISDN) to VoIP networks. As a converged multimedia gateway, it enables seamless integration of traditional telephone systems into IP networks, ensuring smooth convergence between VoIP telephony and conventional telephone infrastructures.
Users can easily configure and customize the gateway through an intuitive, user-friendly graphical interface. It also supports powerful API interfaces, facilitating secondary development and in-depth customization.
The DGW-L302 offers 2 software-selectable T1/E1 interfaces, supports PRI, SS7, and R2 signaling, and can handle up to 60 concurrent calls, meeting the communication needs of organizations of various sizes.
Key features

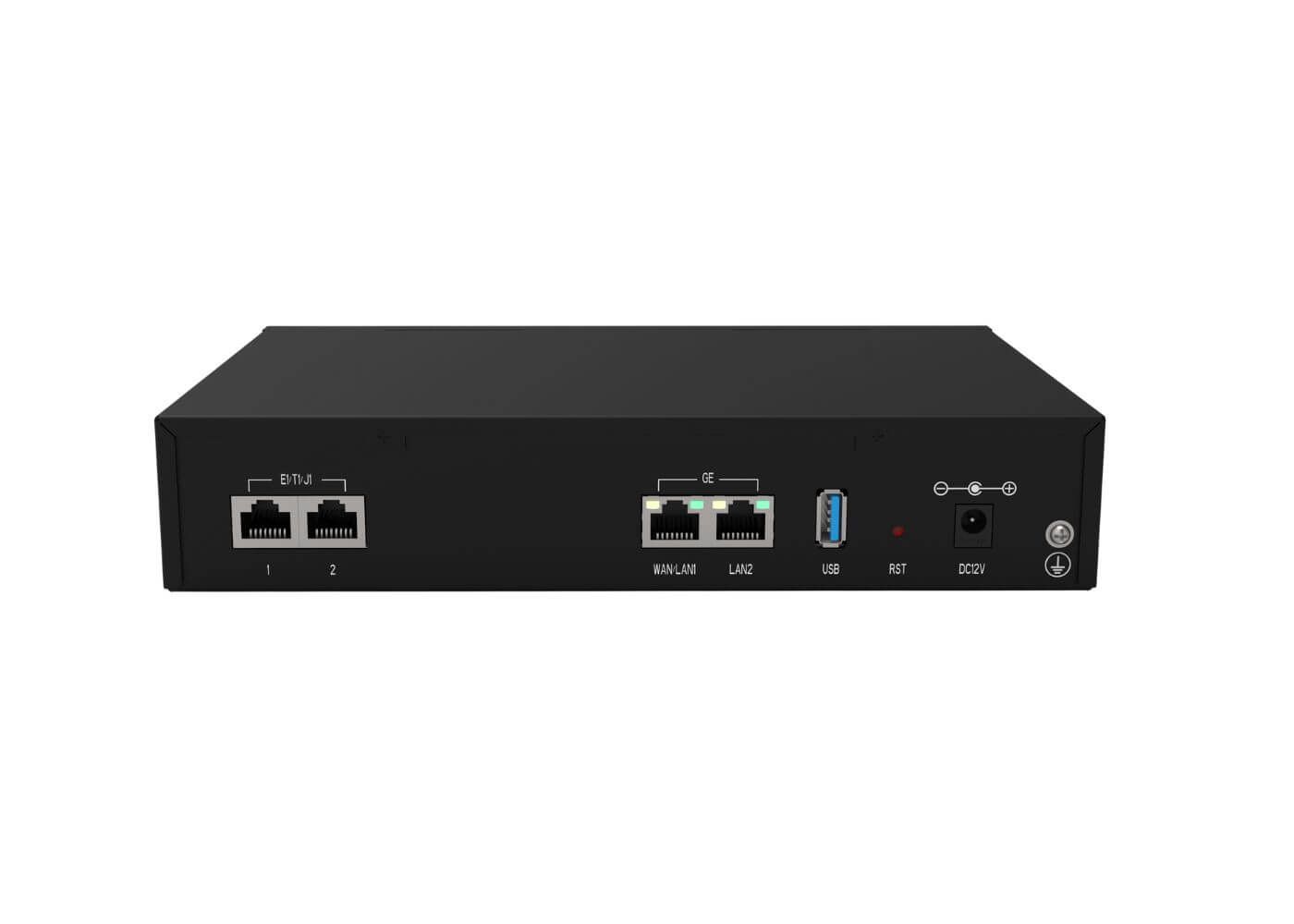

Physical interfaces
2 E1/T1 ports
1 * RS232(RJ45)
1 * WAN: 1000Mbps, RJ-45
1 * LAN: 1000Mbps, RJ-45
Voice & Fax
G.711A/U, G.723.1, G.729A, iLBC, OPUS, ARM and ARM-WB
Comfort noise generation (CNG)
Adaptive (dynamic) jitter buffer
Programmable gain control
DTMF mode: SIP INFO/RFC4733/INBAND
T.38/Pass-through
Echo cancellation (G.168), up to 128 ms
System features
T1/E1/PRI, up to 60 concurrent calls with energy efficiency
Signaling: PRI/R2/SS7
Support for standard R2 signaling in up to 24 countries
Simple and convenient configuration via Web GUI
Supported protocols: SIP, TCP, UDP, RTP, SSH, HTTP, HTTPS
NTP time synchronization and client time synchronization
SSH access for background management, Asterisk CLI command operation
OpenAPI for all functions
Port group management
Custom dial plans supported
Firmware update via HTTP
Call statistics
Auto-provisioning
Dynamic channel status display
Configuration file backup/download
Multiple detailed log outputs
Scheduled reboot
Support for Asterisk, Issabel, 3CX, Freeswitch, VOS, and BroadSoft IPPBX platforms
PSTN
ISDN PRI
23B+D(T1),30B+D(E1),NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig
Signaling 7/SS7
ITU-T, ANSI，ITU-CHINA MTP1/MTP2/MTP3, ISUP
E1 framing type: DF, CRC-4, CRC_ITU
T1 frame type: 2-Frame Multi-frame (F12, D3/4) Extended Super-frame (F24, ESF)
Line codes: E1:HDB3 T1:B8ZS
Clock: local/remote clock source
Network Features
Network type: static IP, DHCP
IPv4, IPv6 UDP/TCP, DHCP, TFTP, SCP
HTTP/HTTPS/SSH
Web-based ping & traceroute support
Web-based network capture
MGT and IP alias support
Layer 2 QoS and Layer 3 QoS
Fast dnssrv switching
Hidden loopback network topology
Cloud-based management
Routing
Flexible routing settings
Support for 512 routes
Caller/called number manipulation and filtering
Add, modify & delete routing
E1/T1 port grouping
Failover support
VoIP protocol
SIP v2.0 (UDP/TCP), RFC326
SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311 SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
SIP-T,RFC3372, RFC3204, RFC3398
SIP trunk working mode: Peer/Access
SIP/IMS registration: up to 2000 SIP accounts
NAT: Dynamic NAT, Rport
Specifications
| Specification | Value |
|---|---|
| E1/T1 ports | 2 / |
| Concurrent calls | 60 / |
| Ethernet port | 2 * 1000Mbps ports |
| Console | RS232(RJ45) |
| Weight | 1.3kg / |
| Dimensions | 232mm*152mm*45mm |
| Maximum power | 12W |
| Power supply | 12V 1A |
| Operating temperature | 0℃~50℃ |
| Operating humidity range | 10%-90% Non-condensing |
| Storage temperature | -20℃~70℃ |
| Certification | CE |
