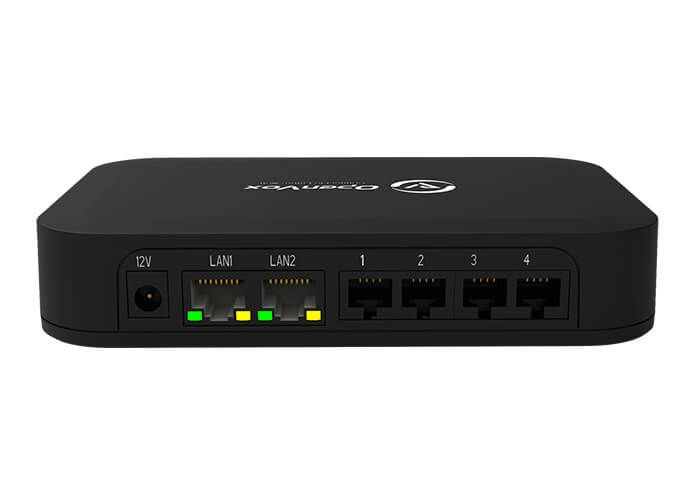

OpenVox iAG400 Series Analog VoIP Gateway
Supports 4 FXS/FXO ports; Uses standard SIP protocol; Specially designed for SMEs and SOHOs;
- 2 * 10/100Mbps PortsEthernet ports
- 176gWeight
- 150mm*100mm*28.7mmDimensions
Product details
The OpenVox iAG400 Series Analog VoIP Gateway supports 4 FXS/FXO ports. With its compact dimensions, refined enclosure, and high performance, the iAG Analog VoIP Gateway is specially designed to save space and maximize savings, making it ideal for SMEs and SOHOs.
It can be configured for different countries, offering a wide selection of codecs including G.711A, G.711U, G.729, G.722, G.726. The iAG Analog VoIP Gateways use the standard SIP protocol and are fully compatible with leading IMS/NGN platforms, IPPBX, and SIP servers.
Technical Specifications:
Software & Platform:
Linux OS
Key features
Physical interfaces (Capacity & Ethernet interfaces)
4 FXS with RJ11
4 FXO with RJ11
1*WAN, 10/100Mbps, RJ-45
1*LAN, 10/100Mbps, RJ-45
Voice & Fax
G.711A/U, G.729A, G.722, iLBC
Comfort noise generation (CNG)
Modem/POS
Adaptive (dynamic) jitter buffer
Programmable gain control
DTMF mode: Signal/RFC2833/INBAND
T.38/Pass-through
Echo cancellation (G.168), up to 128 ms
Call features
Call waiting
Blind transfer
Attended transfer
Call forwarding on busy
Call forwarding on no answer
Unconditional call forwarding
Hotline (warm/immediate)
Message waiting indicator
SIP registration to different servers
Call waiting
Do not disturb
3-party conference
Speed dial
FXS
Connector: RJ11
Dialing mode: DTMF and pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI presentation
Maximum cable length: 3 km
Reverse polarity
Programmable call progress tone
FXO
Connector: RJ11
Dialing mode: DTMF/Pulse dialing
Caller ID: FSK, DTMF
Polarity reversal
Answer delay
Busy tone detection
No-current detection
Software features
Hunt group
Web ACL
Telnet ACL
Action URL
PPPoE
OpenVPN
Digitmap
Prefix-based routing rules
Calling/called number manipulation
VOIP (Protocol)
SIP v2.0 (UDP/TCP), RFC3261
SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
RTP/RTCP, RFC2198, RFC1889
IPv4 and IPv6
Outbound proxy
RFC2806 TEL URI
RFC3581 NAT, rport
VLAN 802.1P/802.1Q
RFC4028 Session Timer
DNS SRV/A Query/NATPR Query
NAT: STUN, static/dynamic NAT
Maintenance
SNMP v1/v2/v3
Automatic provisioning
Web configuration
Sauvegarde/Restauration
Firmware update via Web
CDR
IPOE
Syslog (Emerg, alert, critical, error, warning, notice, info, debug)
Ping/Tracert test
Network capture
NTP/Daylight saving time
Local lVR maintenance
Cloud-based management
Specifications
| Specification | Value |
|---|---|
| Technical specifications | |
| Ports | iAG400-S: 4 FXS ports; iAG400-O: 4 FXO ports |
| Ethernet ports | 2 * 10/100Mbps Ports |
| Weight | 176g |
| Dimensions | 150mm*100mm*28.7mm |
| Power supply | 12V DC/1A |
| Maximum power consumption | 8W |
| Operating temperature | 0°C ~ 50°C |
| Operating humidity range | 10% ~ 90% NON-CONDENSING |
| Storage temperature range | -20°C ~ 70°C |
| Short/long-range loop load | 2 REN, up to 3 km on 24AWG line |
| Certification | CE |
