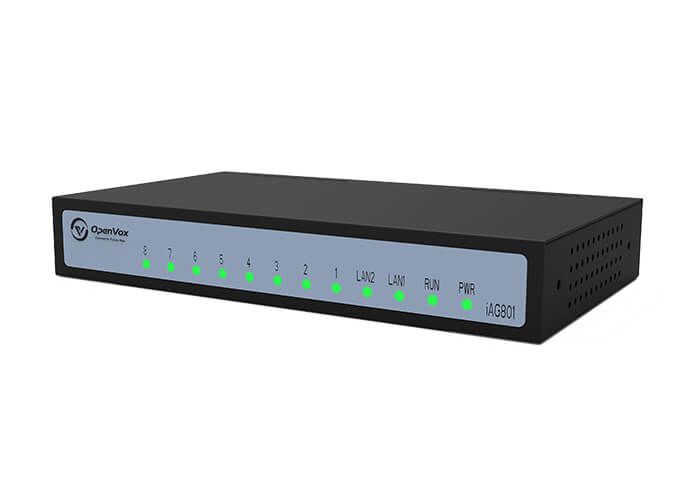

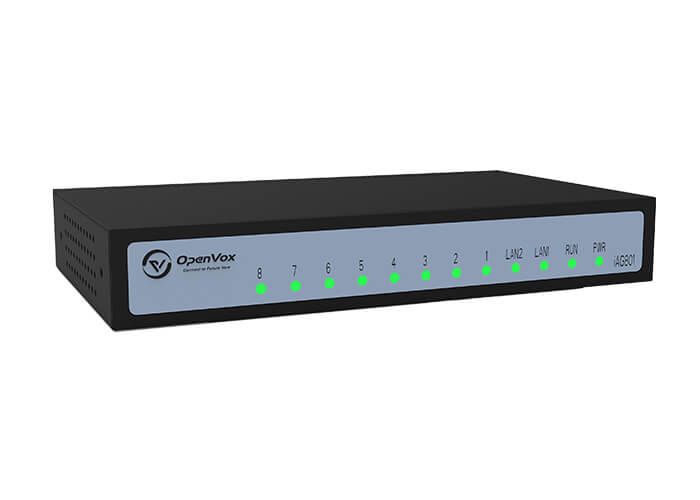

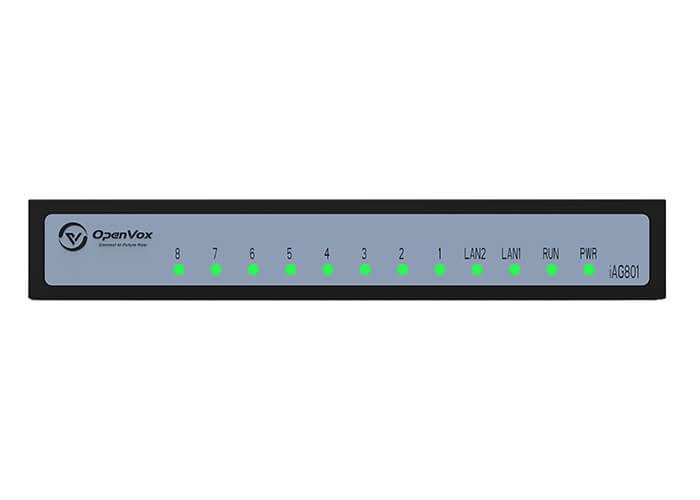

OpenVox iAG801 Analog VoIP Gateway
Supports 8 FXS ports; Uses standard SIP protocol; Compatible with leading IMS/NGN platforms, IPPBX, and SIP servers.
- 8 FXS ports /Ports
- 2 * 10/100Mbps PortsEthernet ports
- 400gWeight
Product details
The OpenVox iAG801 Analog VoIP Gateway supports 8 FXS ports. With its small size, refined enclosure, and high performance, the iAG Analog VoIP Gateway is specially designed to save space and maximize savings, making it ideal for SMEs and SOHOs.
It can be configured for different countries, offering a wide selection of codecs including G.711A, G.711U, G.729, G.722, G.726, iLBC. The iAG Analog VoIP Gateways use the standard SIP protocol and are fully compatible with leading IMS/NGN platforms, IPPBX, and SIP servers.
Technical Specifications:
Software & Platform:
Linux OS
Key features

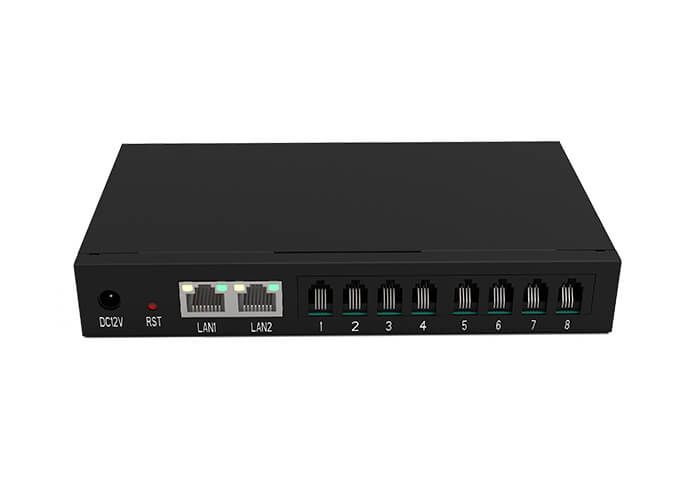

Physical interfaces (Capacity & Ethernet interfaces)
8 FXS with RJ11
1*WAN, 10/100 Mbps, RJ-45
1*LAN, 10/100 Mbps, RJ-45
Voice & Fax
G.711A/U, G.723.1, G.729A, G.722, iLBC, OPUS, AMR and AMR-WB
Comfort noise generation (CNG)
Modem/POS
Adaptive (dynamic) jitter buffer
Programmable gain control
DTMF mode: Signal/RFC2833/INBAND
T.38/Pass-through
Echo cancellation (G.168), up to 128 ms
Call features
Call waiting
Blind transfer
Attended transfer
Call forwarding on busy
Call forwarding on no answer
Unconditional call forwarding
Hotline (warm/immediate)
Message waiting indicator
SIP registration to different servers
Call waiting
Do not disturb
Three-party conference
Speed dial
FXS
Connector: RJ11
Dialing mode: DTMF and pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI presentation
Maximum cable length: 3 km
Programmable call progress tone with reversed polarity
Software features
Hunt group
Web ACL
Telnet ACL
Action URL
PPPoE
OpenVPN
Digitmap
Prefix-based routing rules
Caller/called number manipulation
VEX (Advanced Peer-to-Peer Calling)
VOIP (Protocol)
SIP v2.0 (UDP/TCP), RFC3261
SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
RTP/RTCP, RFC2198, RFC1889
IPv4 and IPv6
Outbound proxy
RFC2806 TEL URI
RFC3581 NAT, rport
VLAN 802.1P/802.1Q
RFC4028 Session Timer
DNS SRV/A Query/NATPR Query
NAT: STUN, static/dynamic NAT
Maintenance
SNMP v1/v2/v3
Automatic provisioning
Web configuration
Sauvegarde/Restauration
Firmware update via Web
CDR
TR069
IPoE
Syslog (Emerg, alert, critical, error, warning, notice, info, debug)
Ping/Tracert test
Network capture
NTP/Daylight saving time
Local lVR maintenance
Cloud-based management
Specifications
| Specification | Value |
|---|---|
| Technical specifications | |
| Ports | 8 FXS ports / |
| Ethernet ports | 2 * 10/100Mbps Ports |
| Weight | 400g |
| Dimensions | 170*98*26mm |
| Power supply | 12V DC/2A |
| Maximum power consumption | 12W |
| Operating temperature | 0°C ~ 50°C |
| Operating humidity range | 10% ~ 90% NON-CONDENSING |
| Storage temperature range | -20°C ~ 70°C |
| Short/long-distance ringing load | 2 REN, up to 3 km on 24AWG line |
| Certification | CE |
