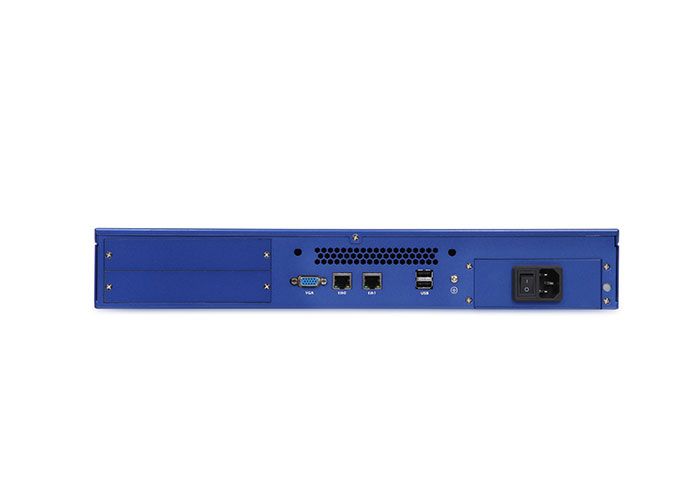

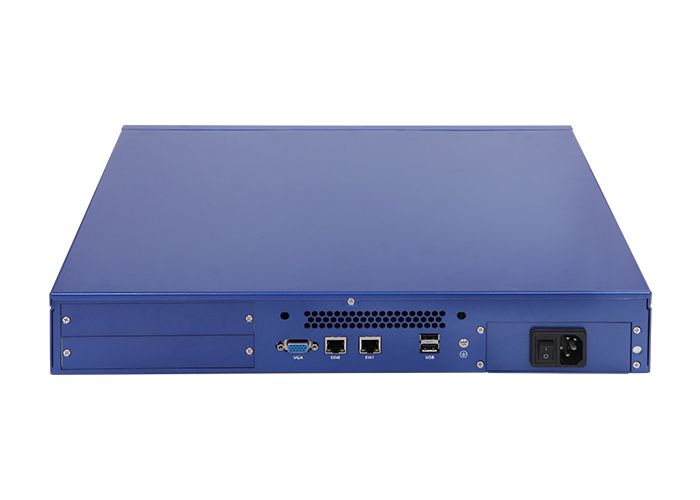

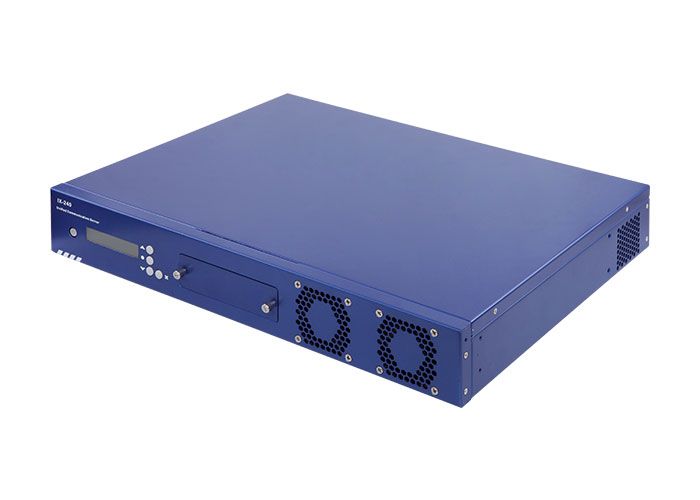

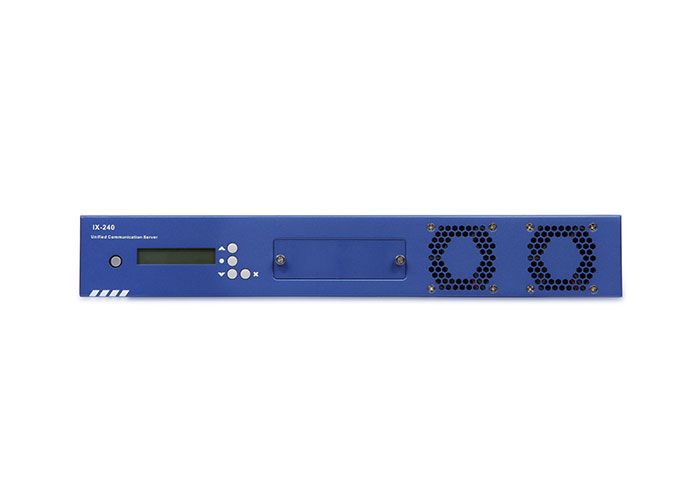

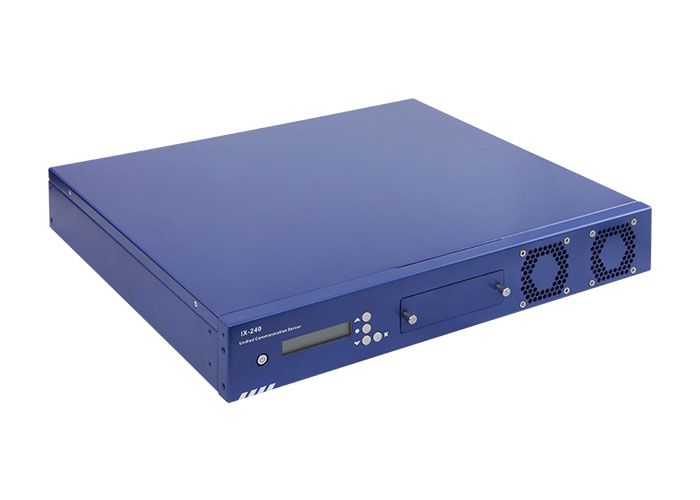

OpenVox IX240 IPPBX

OpenVox IX240 is a standard 19” 1.5U device. It allows users to integrate up to 2 OpenVox PCI-E telephony interface cards, with any combination of FXS/FXO, BRI, E1/T1/J1 or transcoding interfaces. With Intel Quad Core processors, the IX240 IPPBX can easily handle 600 concurrent calls and up to 1000 users. To provide clear, high-fidelity, high-definition audio/video calls, the IX240 can easily integrate with a multitude of HD voice and video codecs.

IX240 supports comprehensive protocol processing, including SIP and IAX2 protocols on the IP side, and BRI, PRI, SS7, R2 on the CPE side. By leveraging the open source platform, IX240 will be preloaded with Elastix®, PBX in a FlashTM, FreePBX IPPBX software.

OpenVox IX240 is a risk-free solution with built-in redundant power supply (RPS) and uninterruptible power supply (UPS) that protect your system and data against damage or loss caused by an unexpected power failure.

Optional hardware RAID 1 support provides better backup for your system data. When RAID1 is installed, users can view the status of storage devices and receive alerts when the HDD fails, then quickly replace a backup HDD.

Technical specifications

UPS: Yes (Optional)

RAID: Yes (Optional)

Max. analog ports: 48

Max. BRI ports: 8

Max. E1/T1/J1 ports: 8

CPU: 1.83GHz Intel(R) Celeron(R) N2930

RAM: Up to 8GB DDR3L 1333

Storage: MSATA SSD and SATA 2.5 or 3.5 inch HDD

Mini PCI-E: 1

NIC: 2* 10/100/1000M

Power supply: 100-240V AC

Redundant power supply: Yes (Optional)

Display: VGA

LCD display: Yes

USB: 2

Power consumption: ~7.5W (Minimal dissipation)

Operating temperature: 0°C to 50°C

Storage temperature: -40°C to 125°C

Humidity: 10 to 90% NON-CONDENSING

Dimensions: 44037066.7mm

Net weight: 3750g

Typical applications

Preloaded risk-free Open Source IPPBX system

FXS/FXO, BRI, E1/T1/J1 Interface Combination

PRI/SS7/R2 to SIP gateway

PRI/SS7/R2/FXS/FXO/BRI signaling converter

PRI/SS7/R2 TDMoE gateway

Flexible application selection (IPPBX or firewall)

Combination options

A400E/(E)810E/(E)1610E/(E)2410E

B(E)200E/(E)400E

D(E)130E/(E)230E/430E

Except for A400E and G410E, all compatible cards can be used together with the EC module.

IX240 supports combining two cards, for example:

A(E)1610E + B(E)400E

D(E)430E + B(E)400E

D(E)430E+A(E)2410E

D(E)430E + A(E)1610E

A(E)810E + A(E)810E

Software & Platform:

Issabel, Elastix, FreePBX, VitalPBX, BrikerPBX
