OpenVox SWG-2008 G/W/L Series Wireless Gateway
GSM/WCDMA/LTE gateways supporting 8 channels; support for multiple codecs; integrated 4-core Intel processor, exceptional processing capacity.
- SWG-2008GProduct name
- 8Module number
- 8Number of channels
Product details

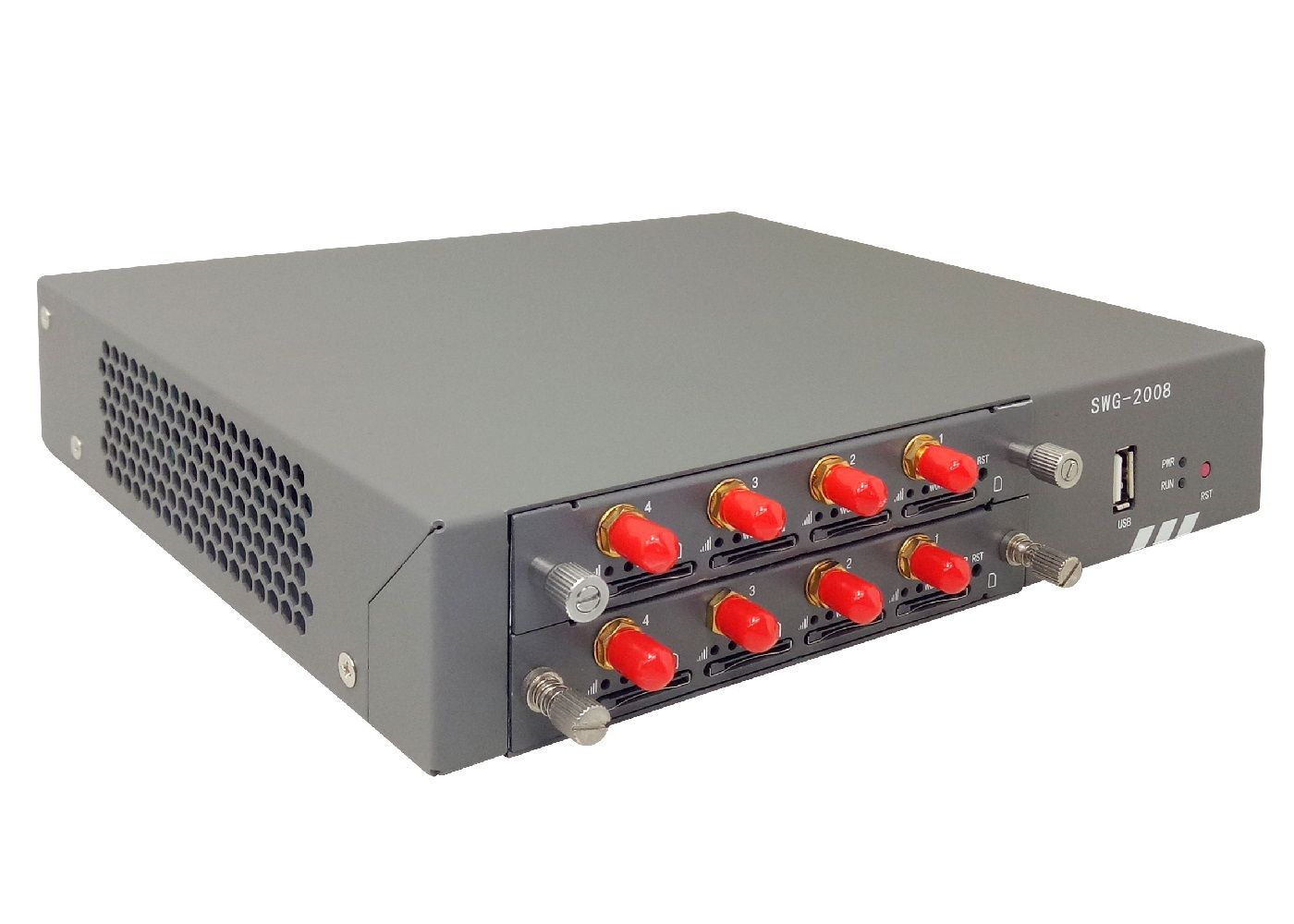

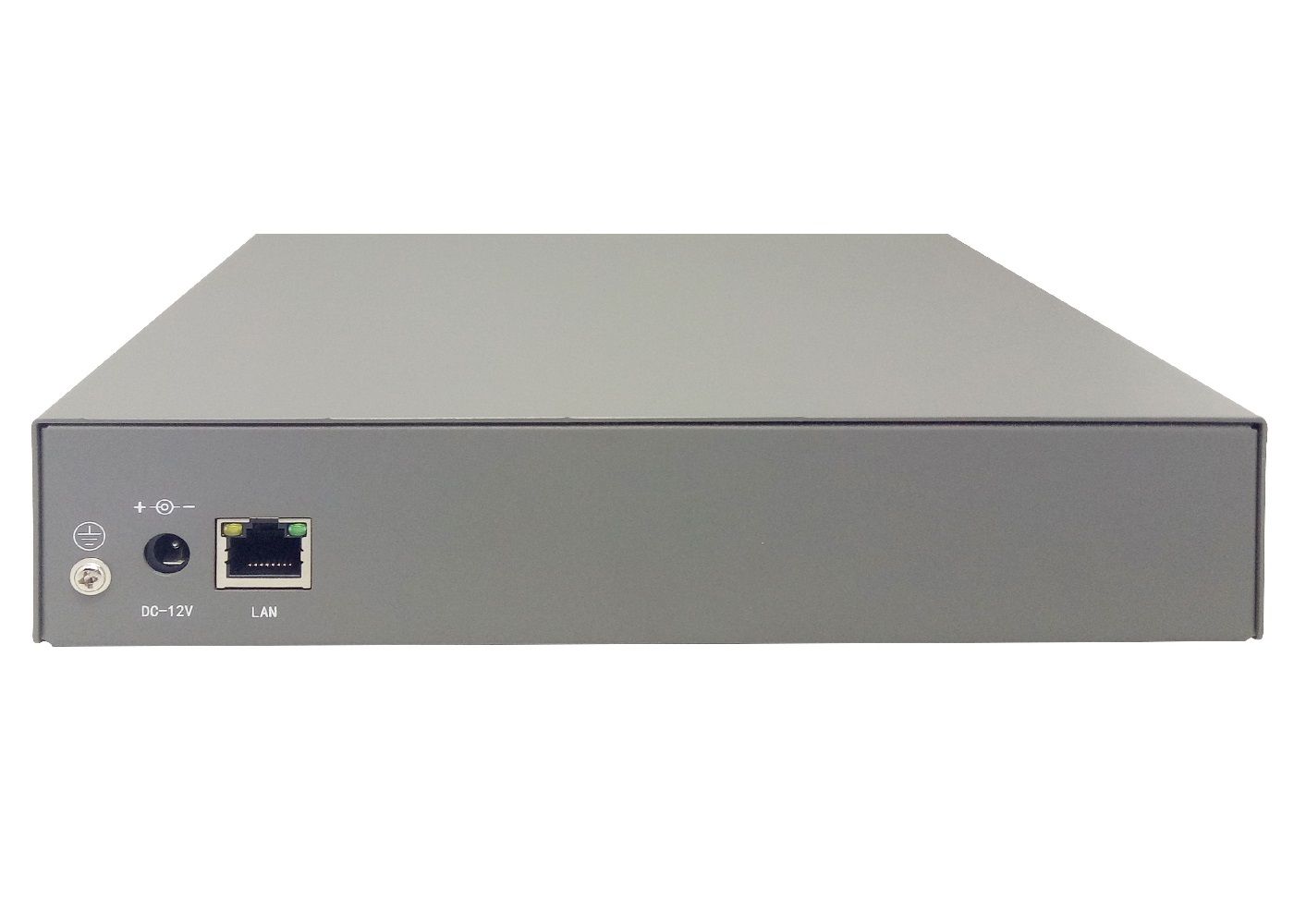

The OpenVox SWG-2008 series wireless gateways include the SWG-2008 G/W/L. The SWG-2008 series gateways are equipped with a 4-core Intel processor and offer exceptional processing capacity. The SWG-2008 series wireless gateways support multiple codecs, including G.711U, G.711A, GSM, G.722, G.723, G.726, and G.729. Our products support sending and receiving SMS, bulk SMS sending, and SMS-to-email conversion. The SWG-2008 series gateways will be 100 % compatible with Asterisk, 3CX, FreePBX, FreeSWITCH, SIP servers, and the VOS VoIP operating platform. They can help users reduce telecommunication and communication costs.
Key features
VoIP features
Support for SIP, IAX2 protocols
Add, modify and delete SIP/IAX2 trunks
SIP/IAX2 registration with domain
SIP V2.0 RFC3261 compliance
DTMF mode: RFC2833/Inband/SIP Info
Multiple SIP/IAX2 registration modes
Rich codecs: G.711A, G.711U, G.729, G.722, G.723, G.726, GSM
Network
IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP
PPTP VPN
HTTP/SSH (optional Telnet)
Web Ping & Traceroute command
Simple security strategy: whitelist, blacklist, security rules
Management
Simple and convenient configuration via Web GUI
Maintenance and configuration via SSH
Configuration file backup and download
Chinese and English pages
Firmware update via HTTP
Change the Web and SSH login password
Restore factory settings
CDR (more than 200 000 CDR lines stored locally)
System log
SIP/IAX2 log
TCP and SIP capture
System features
Combine different SIP/IAX2 trunks into a group
CLID display and hiding (requires carrier support)
Random call interval
Call duration limit
Single-call duration limit
Real Open API protocol (Asterisk-based)
DISA support
SMSC/SMS/USSD
PIN identification
Optional voice codec
Port group management
Remote gateway control via SMS
Bulk SMS transceiver, email delivery and automatic forwarding
SMS encoding/detection and automatic identification
SMS forwarding and quick reply
USSD transceiver
Outgoing
Automatic restart
MMP support
Custom scripts and dial plans support
Openvox cloud management support
Specifications
| Specification | Value |
|---|---|
| Product name | SWG-2008G |
| Module type | GSM |
| Module number | 8 |
| Number of channels | 8 |
| Band | 850/900/1800/1900MHz@GSM |
| Weight (without antenna) | 1.107kg |
| Power consumption (without module) | 6w |
| Dimensions (without antenna) | 220mm*44mm*192mm |
| SIM card | Hot‑Swap |
| WAN | 1*10/100M |
| USB | 1 (supports USB storage) |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity range | 10% ~ 90% |
| Storage temperature range | -20℃ ~ 70℃ |
Documents
