OpenVox SWG-2032 G/C/L Series Wireless Gateway
GSM/LTE gateways supporting 32 channels; multiple codec support; unique LCD screen;
- SWG-2032GProduct name
- 32Module number
- 32Number of channels
Product details

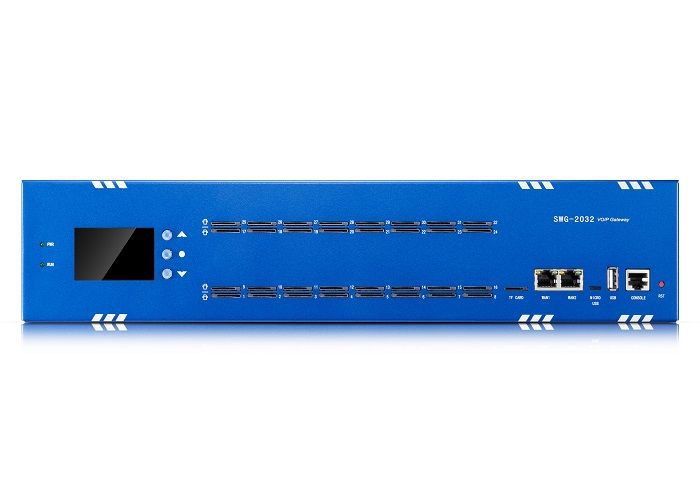

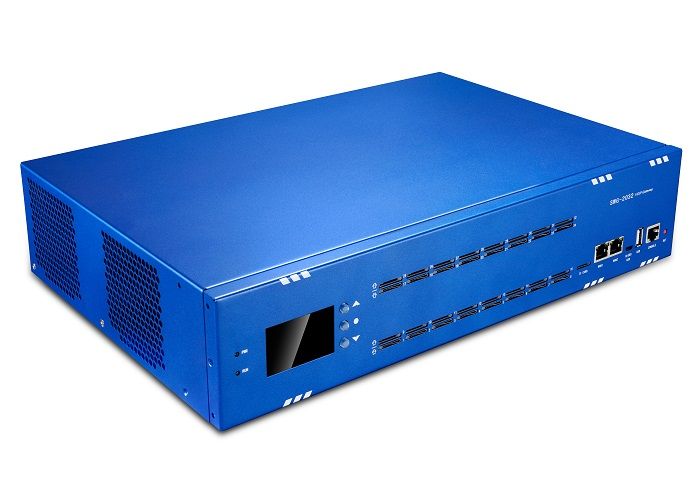

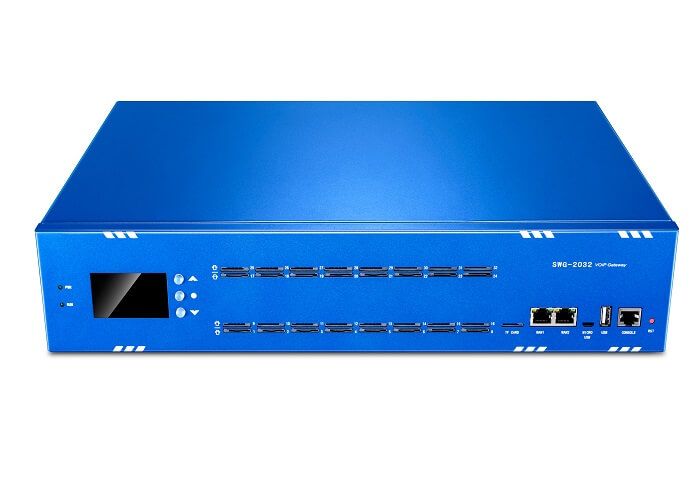

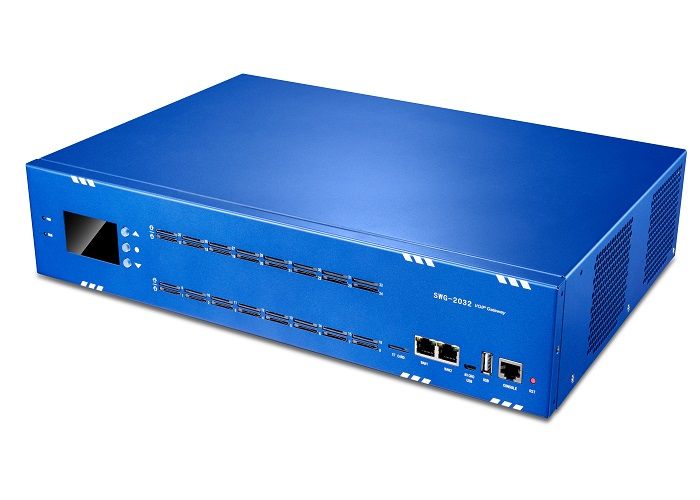

The OpenVox SWG-2032 series wireless gateways include the SWG-2032 G/C/L models. The SWG-2032 gateways support multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729. Our products enable sending, receiving, and bulk sending of SMS, as well as SMS-to-email conversion. The SWG-2032 series is fully compatible with Asterisk, 3CX, FreePBX, FreeSWITCH, SIP servers, and the VOS VoIP platform. It provides users with more diverse telecommunications access methods and helps reduce communication costs.
The SWG-2032 gateways are equipped with a 4-core Intel processor and offer exceptional processing capacity. They feature a unique LCD screen, allowing the status of each channel to be viewed clearly. Using the button next to the screen, you can easily perform various functions, such as viewing gateway system information, configuring network settings, restarting the gateway, or restoring factory settings without logging in to the WEB page.
Key features
VoIP features
Support for SIP, IAX2 protocols
Add, edit and delete SIP/IAX2 trunks
SIP/IAX2 registration with domain
SIP V2.0 RFC3261 compliance
DTMF mode: RFC2833/Inband/SIP Info
Multiple SIP/IAX2 registration modes:
Extensive codecs: G.711A, G.711U, G.729, G.722, G.726, GSM
Network
IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP
PPTP VPN (not available for EAEU)
HTTP/SSH (optional Telnet)
Web Ping & Traceroute commands
Simple security strategy: whitelist, blacklist, security rules
Management
Simple and convenient configuration via Web GUI
Maintenance and configuration via SSH
Configuration file backup and download
Chinese and English pages
Firmware update via HTTP
Change the Web and SSH login password
Restore factory settings
CDR (more than 200 000 lines of local CDR storage)
System log
SIP/IAX2 log
TCP and SIP capture
System features
Combine different SIP/IAX2 trunks into a group
CLID display and hiding (requires carrier support)
Random call interval
Call duration limit
Single-call duration limit
Real Open API protocol (Asterisk-based)
DISA support
SMSC/SMS/USSD
PIN identification
Optional voice codec
Port group management
Bulk SMS transceiver, email delivery and automatic forwarding
Automatic SMS identification encoding/detection
Remote gateway control via SMS
SMS forwarding and quick reply
USSD transceiver
Outgoing
Automatic restart
MMP support
Custom scripts and dial plans support
Openvox cloud management support
Specifications
| Specification | Value |
|---|---|
| Product name | SWG-2032G |
| Module type | GSM |
| Module number | 32 |
| Number of channels | 32 |
| Band | 850/900/1800/1900MHz@GSM |
| Weight (without antenna) | 4.606kg |
| Power consumption | 35w |
| Dimensions (without antenna) | 440mm*88mm*300mm |
| SIM card | Hot‑Swap |
| LCD dimensions | 2.4" |
| LCD resolution ratio | 240*400 |
| LAN | 1*10/100M |
| WAN | 1*10/100M |
| USB | 1 (USB storage support) |
| TF | 1 (TF Card storage support) |
| Console | 1 |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity range | 10% ~ 90% |
| Storage temperature range | -20℃ ~ 70℃ |
