SWG-1016G
VoIP GSM gateway providing 16 SIM modules; supports 16 GSM channels and 1 Ethernet port.
Product details

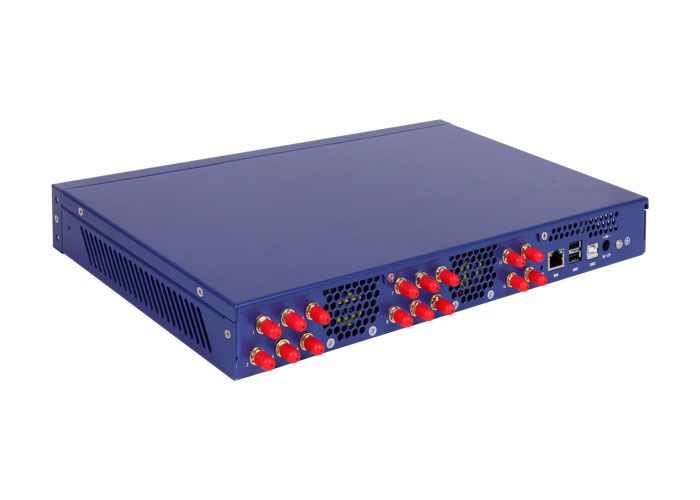

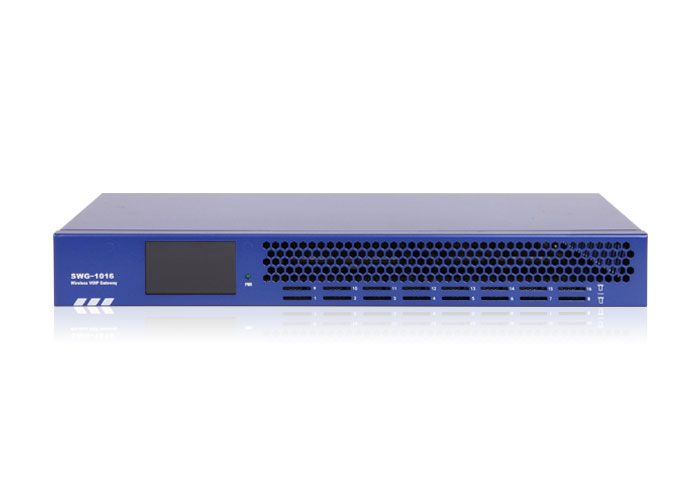

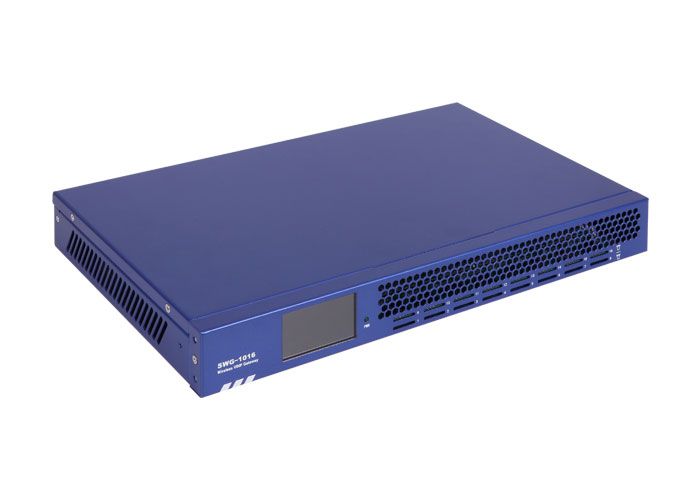

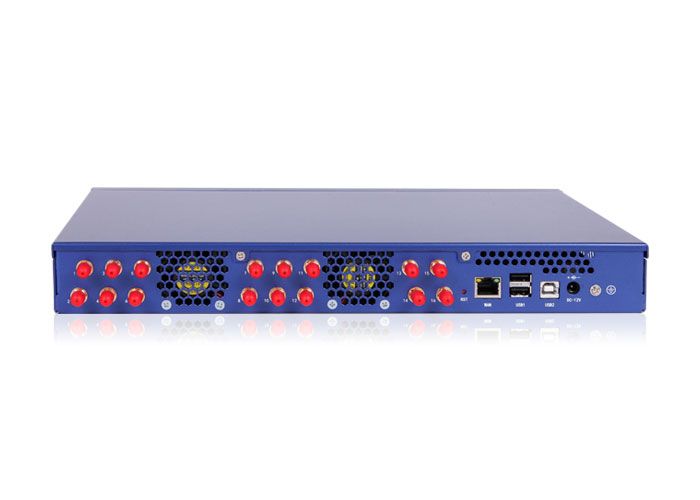

The OpenVox SWG-1016G gateway supports 16 GSM channels and 1 Ethernet interface, and operates on the 850/900/1800/1900 MHz bands.
The SWG-1016G gateway supports multiple codecs, including G.711U, G.711A, GSM, G.722, G.723, G.726, G.729. The GSM gateway is 100% compatible with Asterisk, Elastix, trixbox, 3CX, FreeSWITCH SIP server and the VOS VoIP operating platform. It can help users reduce telecommunications and communication costs.
Technical specifications:
16 GSM channels
1 SIM card per GSM channel
1 10/100M LAN interface
16 standard SMA-K interfaces
LCD size: 2,4"
LCD resolution ratio: 240*400
Storage temperature range: -20~70℃
Operating temperature range: 0~40℃
Operating humidity range: 10%~90% non-condensing
Power source: 12V DC/2,33A
Power consumption: 36W
Dimensions: 36cm21cm4,44cm
Weight: 1,544Kg
Key features
System features
Multiple codecs: G.711U, G.711A, GSM, G.722, G.723, G.726, G.729
Simple and convenient configuration via Web GUI
Firmware update via HTTP
Automatic restart
DISA support
Multiple detailed LOG outputs
Call status display
Mobile Number Portability (MNP)
CDR
Support for backing up and downloading configuration files
Supports custom scripts, dial plan
Restore factory settings
GSM features
Caller ID display and concealment
GSM ：850/900/1800/1900 MHz
Real Open API protocol
Call duration limitation
SMSC/SMS/USSD
PIN identification
Voice codec
Port group management
Remote control of the SMS gateway
Bulk SMS transmitter, email sending and automatic forwarding
SMS forwarding and quick reply
VoIP characteristics
Support for SIP, IAX2 protocols
Add, modify and delete SIP/IAX2 trunks
SIP/IAX2 registration with domain
DTMF mode: RFC2833/Inband/SIPInfo
Multiple SIP/IAX2 registration modes
Network
IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP
HTTP/SSH (Optical Telnet)
Web Ping & Traceroute command
Simple security strategy: whitelist, blacklist, security rules
Specifications
See the manufacturer description and linked documentation for product information. No specification table is published on the captured product webpage.
