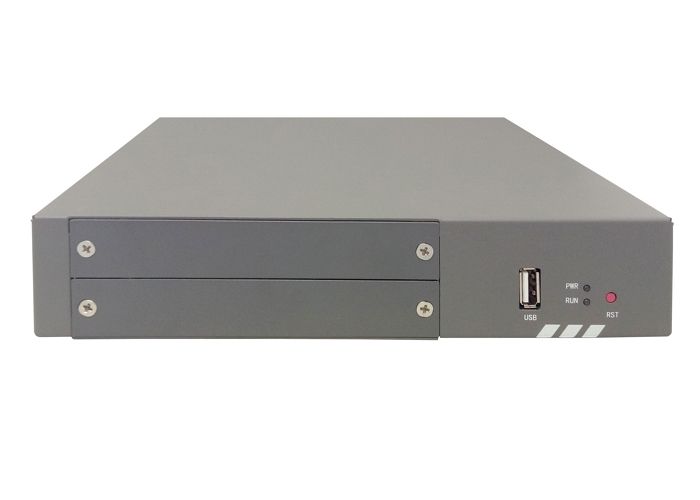

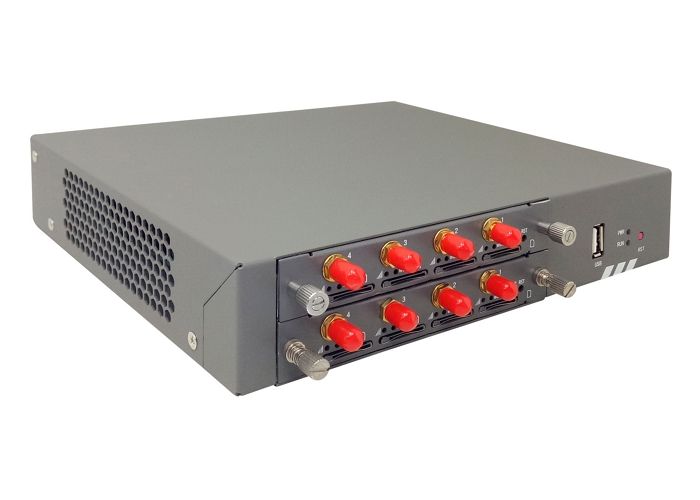

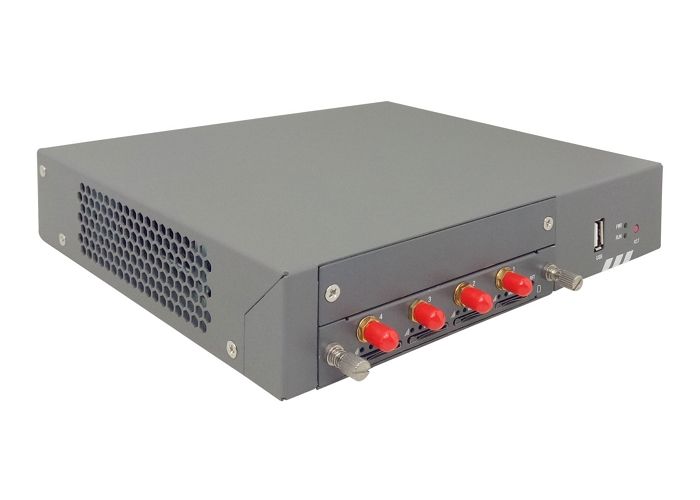

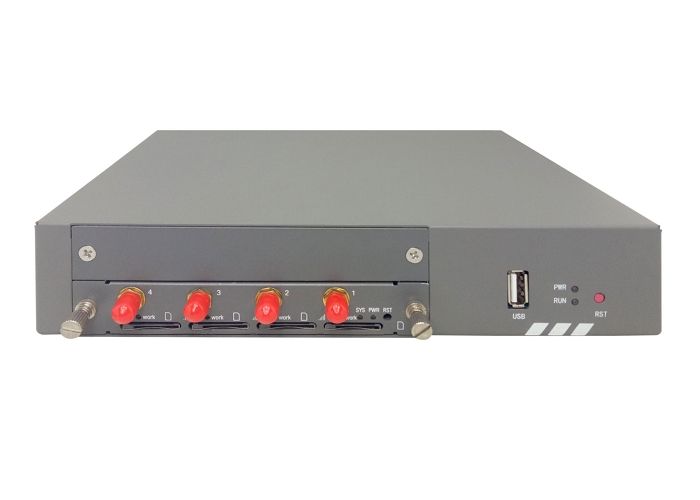

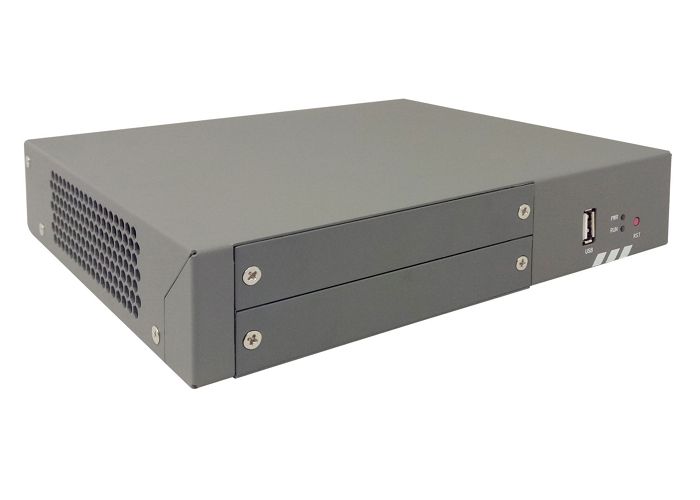

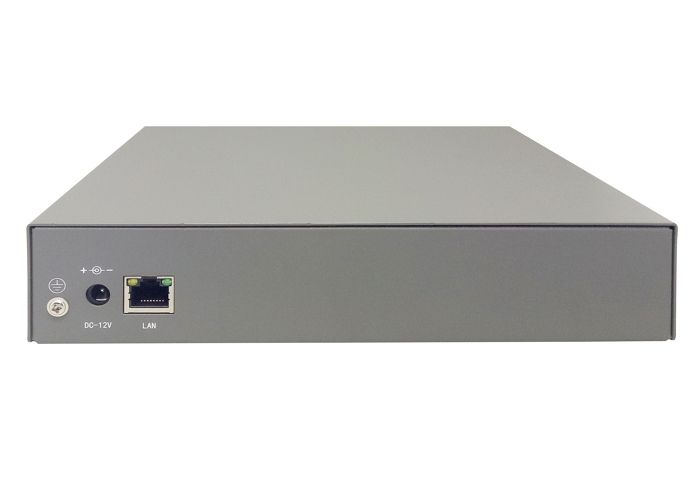

VS-GW1202 V2 GSM Wireless Gateway

VS-GW1202 V2 Wireless Gateway, an upgraded product in the VS-GW1202 series, is now the most powerful open source VoIP gateway solution based on Asterisk for SMEs and SOHOs. With a user-friendly graphical interface and a unique modular design, users can easily configure their customized gateway. Secondary development can also be carried out via AMI (Asterisk Management Interface).

There are three models in the new VoxStack Gateway series: the VS-GW1202 V2, the VS-GW1600 V2 and the VS-GW2120 V2 Wireless Gateway. The VS-GW1202 V2 Wireless Gateway, with its modular design, can accommodate up to 2 GSM/WCDMA/LTE modules, supporting 4 to 8 GSM/WCDMA/LTE channels. It is designed to interconnect a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.726 & GSM, with 2G/3G/4G networks to quickly reduce telecommunications expenses and maximize savings. With its unique design, the VS-GW1202 V2 Wireless Gateway supports hot-swapping SIM cards and GSM/WCDMA/LTE gateway modules. Users can simply add or remove modules for expansion or hardware replacement.

The wireless gateway is equipped with a LAN switch card that enables stacking during hardware upgrades. It supports sending and receiving SMS, bulk sending, and SMS-to-email conversion. The VS-GW1202 V2 Wireless Gateway uses the standard SIP protocol and is compatible with IMS/NGN platforms, IPPBX systems and SIP servers, supporting most VoIP platforms such as Asterisk, Elastix, 3CX, FreeSWITCH, Broadsoft, etc.

Technical specifications:

Up to 8 GSM/WCDMA/LTE channels

1 SIM card per GSM/WCDMA/LTE channel

1 10/100M LAN interface

Up to 8 standard SMA-K interfaces

Storage temperature range: -20~70℃

Operating temperature range: 0~40℃

Operating humidity range: 10%~90% non-condensing

Power supply: 12V DC/2A

Power consumption: 18W

Dimensions: 15cm19cm4.5cm

Weight: VS-GW1202 V2: 1300g VS-GWM420G: 162g VS-GWM420W: 170g VS-GWM420L: 178g

Software & Platform:

Linux OS

Certification

CE
