CCU-I-TGL

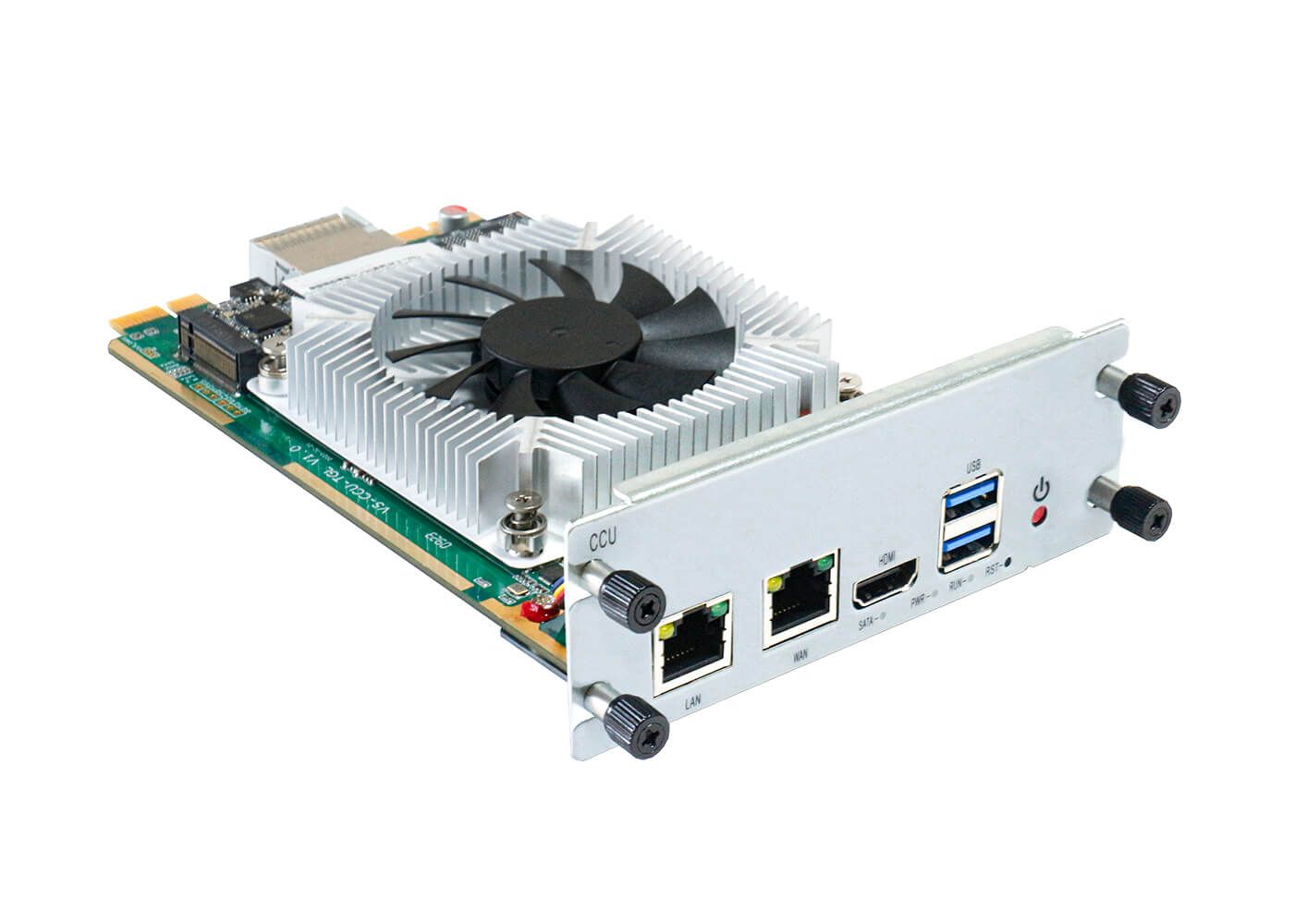

CCU-I-TGL is a new main control card developed for VoIP applications. It is equipped with Intel Quad Core processors capable of handling up to 1800 concurrent calls using the G.711 codec or 1000 concurrent calls with the G.729 codec (measured under laboratory conditions). To ensure clear, high-fidelity, high-definition audio/video calls, CCU-I-TGL is designed to integrate with various HD voice and video codecs.

CCU-I-TGL supports comprehensive protocol processing, including SIP and IAX2 protocols on the IP side, and BRI, PRI, SS7, R2, GSM and WCDMA on the CPE side. Taking full advantage of open-source platforms, CCU-I-TGL comes preloaded with OpenVox UC PBX System, PBX in a FlashTM, and FreePBX IPPBX software.

Technical Specifications

Freely install your own software (Linux or Windows)

CPU: 11th-generation Intel(R) Core(R) i5 or i7 processors

RAM: Up to 32 GB DDR4‑3200

Storage: Onboard M.2 SATA SSD and 2.5" SATA HDD

NIC: 3 Gigabit Ethernet (two on the front panel and one on the rear panel)

Display: 1 Type A HDMI port

USB: two USB 3.0 ports

Power consumption: 40 W

Operating temperature: 0 °C to 50 °C

Storage temperature: -40 °C ~ 125 °C

Humidity: 10 ~ 90 % NON-CONDENSING

Certifications

RoHS compliant

Software & Platform:

Issabel, Elastix, FreePBX, VitalPBX, 3CX, Windows
