Unified Communications Platform
CCU-N-ALDER
CPU: 3,40 G Intel quad core processors N100; RAM: 8 GB DDR5; NIC: 3 Gigabit Ethernet (two on the front panel and one on the rear panel);
Product details

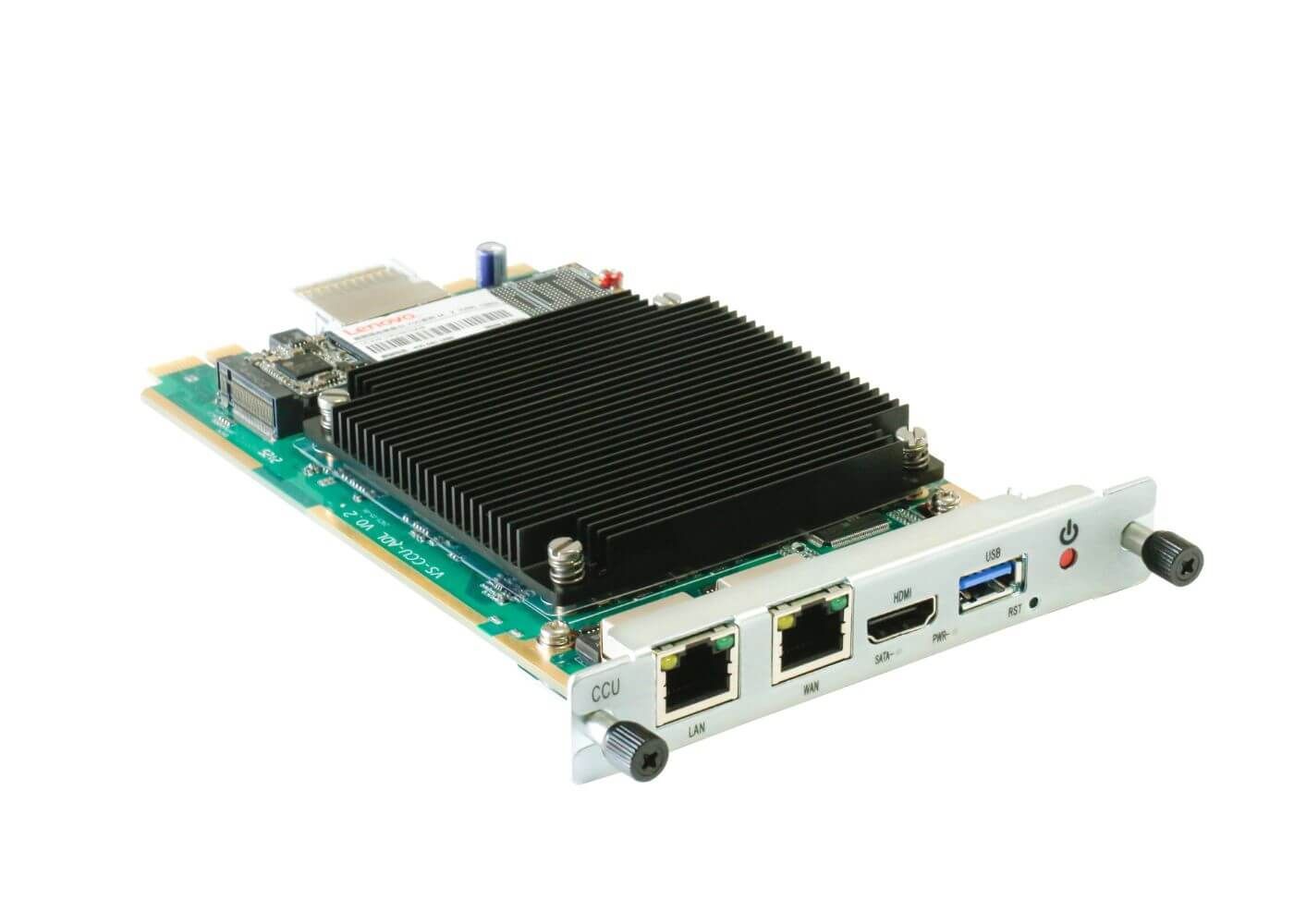

VS-CCU-N-ALDER is a new asterisk® motherboard. With Intel Quad Core processors, it is suitable for scenarios with up to 800 users and no more than 200 simultaneous calls. To provide users with clear, high-fidelity, high-definition audio/video calls, VS-CCU-N-ALDER can easily integrate a wide range of HD voice and video codecs.
VS-CCU-N-ALDER supports comprehensive protocol processing, including SIP and IAX2. Leveraging the open-source platform, VS-CCU-N-ALDER comes preloaded with a PBX running FreePBX, 3CX, Issabel IPPBX.
Technical specifications
CPU: 3,40 G Intel quad core processors N100
RAM: 8 GB DDR5
NIC: 3 Gigabit Ethernet (two on the front panel and one on the rear panel)
Storage: SSD 128 G M.2-2280 SATA protocol or 128 G M2-2242 SATA protocol
1 HDMI standard
USB: 1
Power consumption: 18 W
Operating temperature: 0 °C to 50 °C
Storage temperature: -40 °C ~ 125 °C
Humidity: 10 ~ 90 % NON-CONDENSING
Certifications
RoHS compliance
Software & Platform:
3CX, Issabel, FreePBX, Linux/Windows
Warranty
One-year warranty
Key features
Features
Maximum simultaneous calls:
2000 simultaneous calls with G.711 codec,
620 simultaneous calls with G.729 codec
*The above data comes from the laboratory and does not account for additional application overhead in a real-world environment; actual performance may be lower than the laboratory results.
Transport protocol: UDP, TCP, TLS, SRTP
DTMF: In-band, RFC2833, SIP INFO
IP services: Static IP, DHCP, VPN, Firewall, PPPoE, Bridge
SIP and IAX2 support
Web-based operator panel
DISA (Direct Inward System Access)
Call Detail Record (CDR)
Call recording, call parking, queues, voicemail, conference
Echo cancellation
Callback support
Flexible and configurable IVR
PIN set support
Time condition support
VOIP provider configuration
Follow-me support
Ring group support
Video phone support
Channel usage reports
Preloaded system
Issabel-2019 x86_64
FreePBX-2020 x86_64
*The default preloaded system is Issabel-2019 x86_64.
Specifications
See the manufacturer description and linked documentation for product information. No specification table is published on the captured product webpage.
