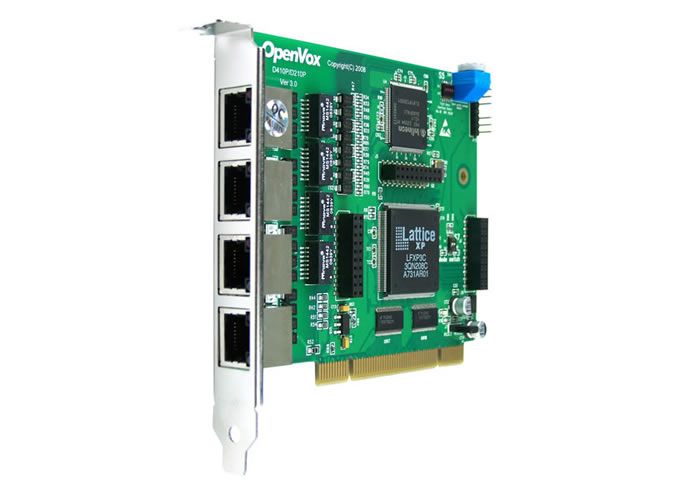

D410 Series

The OpenVox D410 Series is the world’s most affordable single-port T1/E1/J1 card and offers excellent voice quality on telephone systems. It supports up to 120 voice calls or 8,192 Mbps full-duplex data throughput over four T1, E1, or J1 lines. It fully utilizes the Octasic® hardware echo cancellation module.

The D410 Series features an echo cancellation module based on onboard Octasic® DSP. It supports E1, T1, and J1 environments. It can be selected per card or per port. This feature enables signaling translation between E1 and T1 equipment and allows low-cost T1 channel banks to connect to E1 circuits. The EC module based on Octasic® DSP enables users to eliminate echo tails of up to 128 ms or 1024 taps across 128 channels in E1 mode or 96 channels in T1/J1 mode. In addition, this module uses Octasic® voice quality enhancement to provide superior sound quality on all calls.

The D410 Series supports industry-standard telephony and data protocols, including Primary Rate ISDN protocol families (N. American and Standard Euro) for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Line-side and trunk-side interfaces are supported.

The D410 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™, and IPPBX/IVR projects, as well as other open-source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target applications

Voice-over Internet Protocol (VoIP) services

Complex IVR trees

“Meet‑Me” Bridge Conferences

Calling card platforms

VoIP gateways (supporting SIP, H.323, and IAX)

Legacy PBX/IVR services

Voice/data router (replaces expensive routers)

PRI/Switch compatibility – network or CPE

Minimum hardware requirements

Pentium III 800 MHz

128 MB RAM

Technical specifications

4 T1/E1/J1 ports with PCI‑Express interface for high-performance voice and data applications

RJ48 connector

Certifications

RoHS compliant

Certifications: FCC, CE and LVD

Operating systems

Linux (all versions, releases and distributions from 1.0 onward)

PRI Switch compatibility

EuroISDN (PRI or PRA) – Q.931/Q.921

Network or CPE

AT&T 4ESS

National ISDN 2

CAS voice modes

DMS 100

Lucent 5E

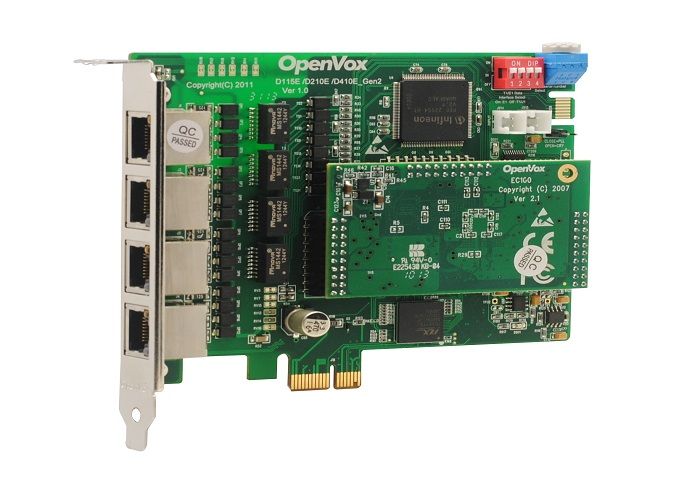

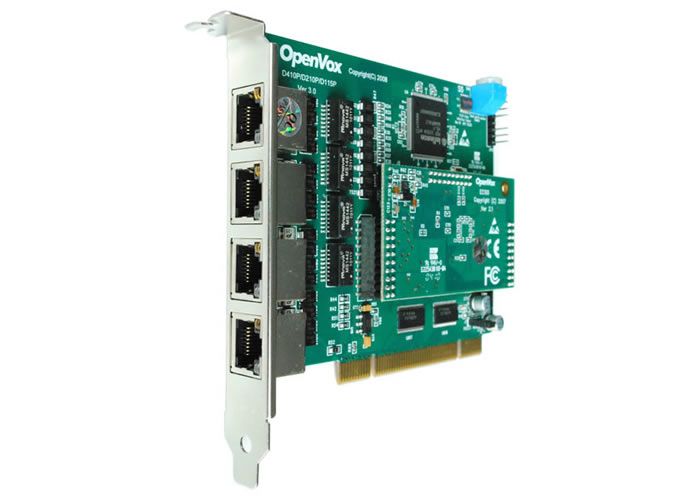

Optional Octasic® DSP echo cancellation module – EC100‑128

128 ms tail per channel (on all channel densities)

Octasic® music protection

Adaptive noise reduction

Automatic level control (G.169)

Field-proven scalable algorithm

V.25 / V.8 answer tone (with and without phase reversal)

DTMF per Q.24

No CPU load due to echo cancellation.

Does not increase the card’s physical size, and no additional slot is required

EC100‑128 power consumption: 0,33 W/3,5 W

Storage temperature: -40 °C to 75 °C
