MIU (Magnet Interface Unit)
Magnetic interface cards are available for UCP1600/2120/4131 Series chassis; the MIU module provides 4/8 magnetic ports.
Product details
MIU Magnet Gateway, a powerful voice access device, provides IP network access for 4/8 channels of magnetic telephones. Using standard SIP protocols, it can interconnect with standard SIP softswitch systems to provide VoIP/MoIP solutions for users of magnetic telephones and others. The device is easy to deploy quickly, offers a high level of security and strong anti-jamming capability, and is widely used in fields such as military systems and other special command and dispatch systems.

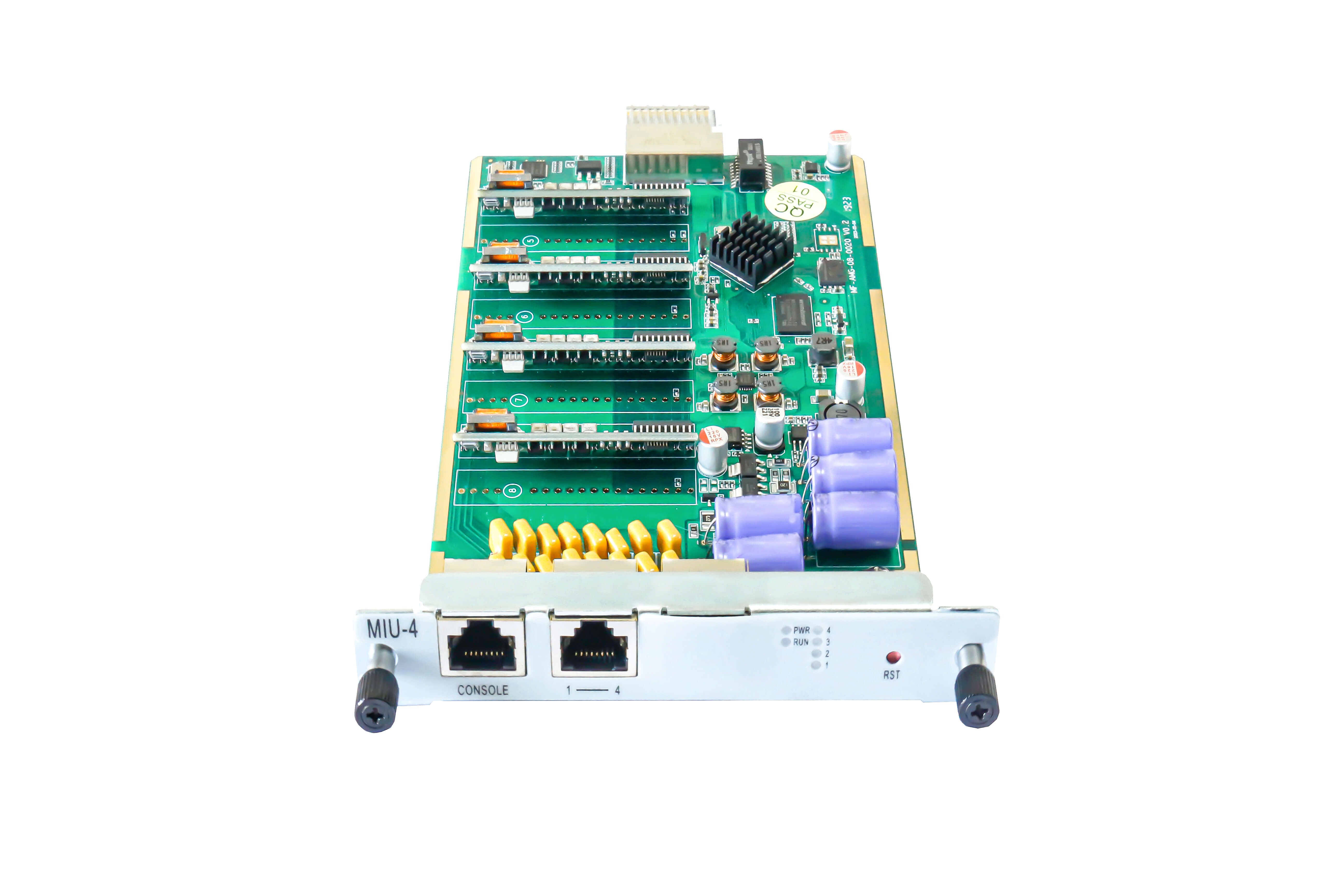

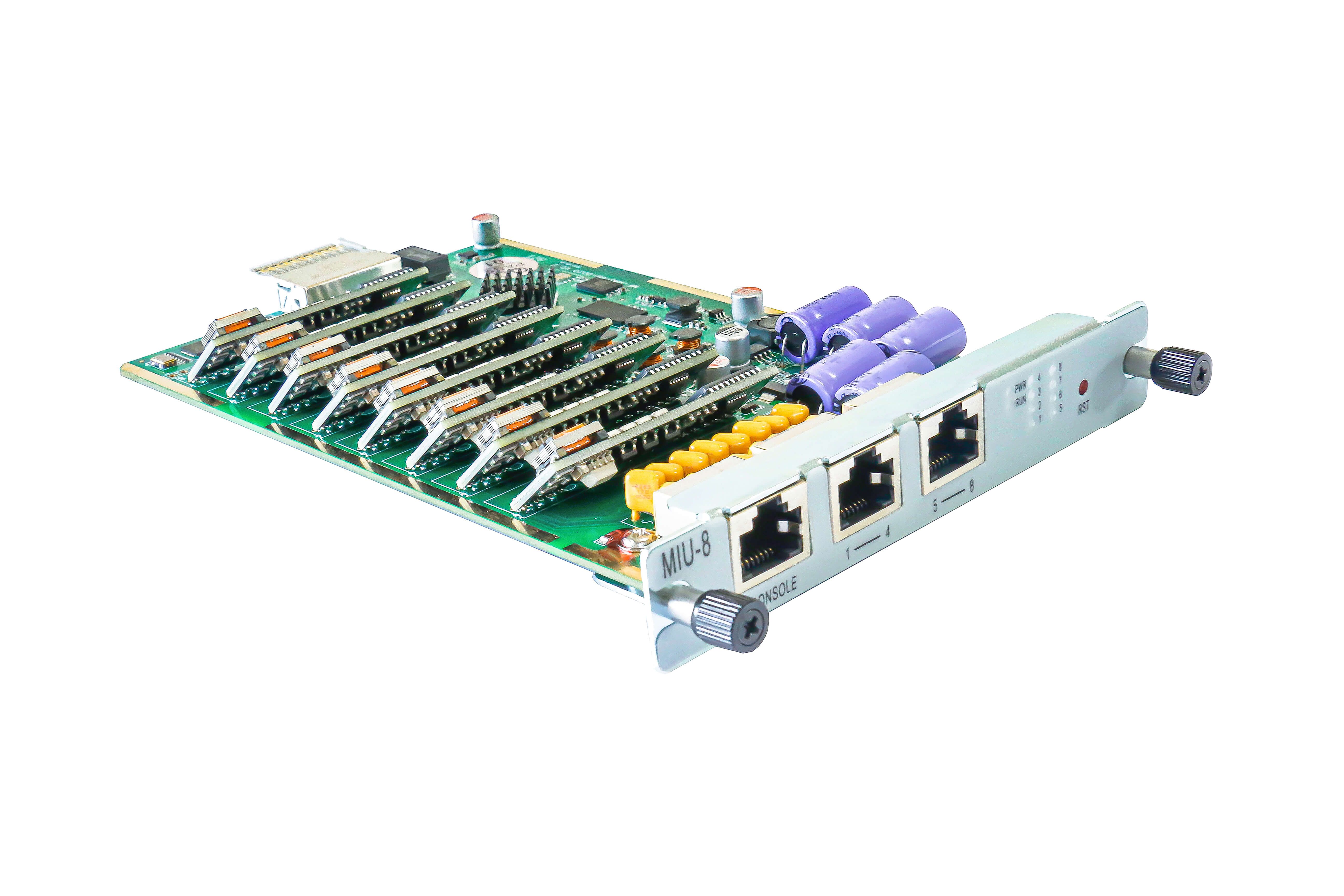

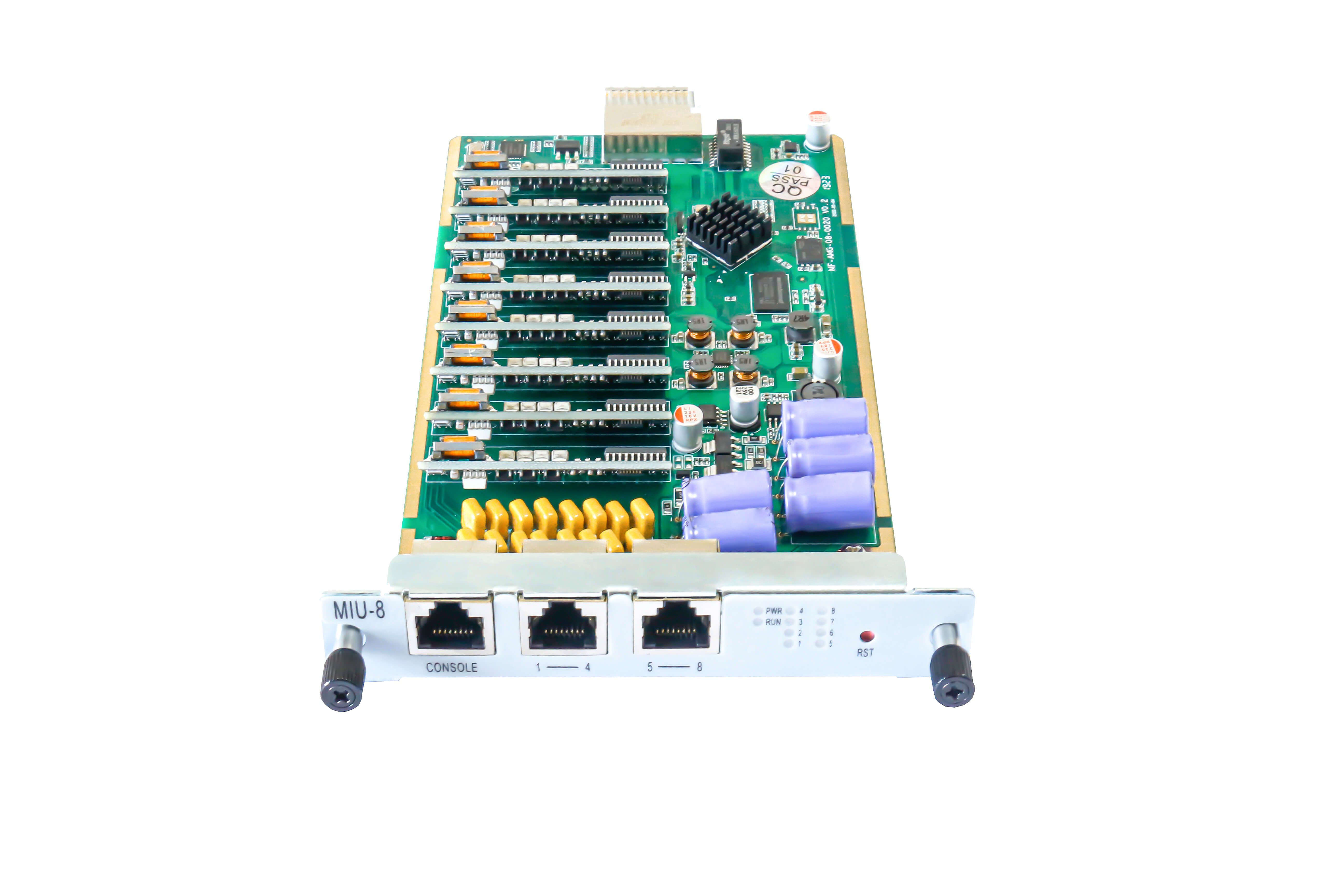

The MIU panel supports 4/8 magnetic channel interfaces, a console interface, an operation status indicator, a power status indicator, channel status indicators, and an RST restart button. For its software interface, MIU uses the standard SIP protocol, is compatible with the most widely used IPPBX and SIP servers, and supports most VoIP operating platforms, such as Asterisk, Issabel, 3CX, FreeSwitch, BroadSoft, VOS, and so on.
Technical specifications:
Storage temperature range: -40~125℃
Operating temperature range: 0~50℃
Operating humidity range: 10%~90% non-condensing
Maximum power consumption: 6.5W
Dimensions: 12.4cm×17.3cm×2cm
Weight: 178g
Key features
Supports 4/8-port magnetic telephone interface
Supports WEB network management configuration
Supports various network protocols; the unified communications platform can be integrated with various types of interfaces
Connects to enterprise IP telephony systems and various unified communications systems to improve communication efficiency
Automatically detects and initiates a call to different magnetic telephone interfaces to establish a call quickly
Supports automatic hang-up for peer-to-peer calls and automatic hang-up for peer-to-peer calls.
The local magnetic telephone can ring to call the preset telephone; local hang-up requires pressing the control button.
The magnetic telephone interface uses transformer coupling mode, providing strong interference resistance.
Adapts to different network environments to ensure stable transmission.
Adaptive codec technology to ensure call quality
Rich logging features
Open API interface
Supports remote SSH operation
Supports configuration file backup and download
Supports DTMF detection for SIP v1 (RFC2543), v2 (RFC3261) protocols
Provides Ethernet electrical and optical interfaces, 10/100BASE-T full-duplex, half-duplex, adaptive, with bandwidth up to 100M
Supports DHCP, DNS/DDNS, NAT networking
Supports volume adjustment, gain adjustment, hold, call waiting, call transfer, and caller ID
Compatible with Asterisk, Elastix, 3CX, FreeSWITCH SIP Server, and VOS VoIP operating platforms
Specifications
See the manufacturer description and linked documentation for product information. No specification table is published on the captured product webpage.
