OpenVox iAG802 Analog VoIP Gateway

VoIP Gateways

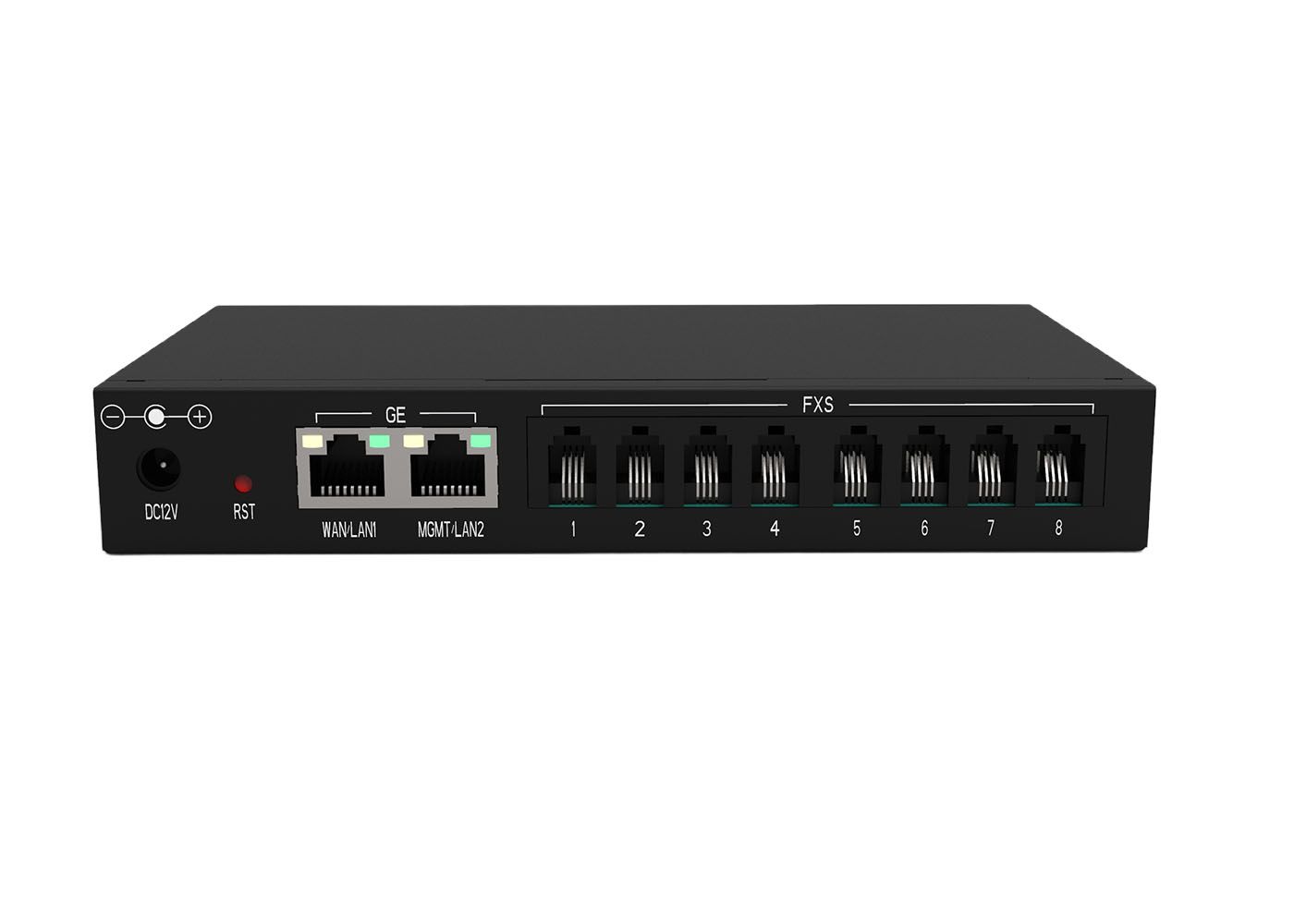

OpenVox iAG802 Analog VoIP Gateway

Supports 8 FXS ports; Supports 2 Gigabit Ethernet ports; Uses the standard SIP protocol;

  • 8 FXS ports /Ports
  • 2 * 10/100/1000Mbps PortsEthernet ports
  • 400gWeight
Request a quoteWhatsAppContact

Product details

OpenVox iAG802 is a multifunctional analog gateway that provides 8 FXS ports for seamless connection between IPPBX, fax machines, analog telephones and operators. In addition, it offers excellent simultaneous voice/fax processing capabilities, robust performance and high stability, and provides high-quality calling services for operators, enterprises, call centers and residential users in residential communities.

The iAG802 analog gateway, an economical product in the iAG series, is an ideal analog VoIP gateway solution for SMEs and SOHO. With a user-friendly graphical interface and unique design, users can easily customize and configure their gateway. Secondary development can also be carried out via the API.

The iAG802 analog gateway is developed to interconnect a wide selection of codecs, including G.711A/U, G.723.1, G.729A, G.722, iLBC, OPUS, AMR and AMR-WB. The iAG802 series uses the standard SIP protocol and is compatible with leading VoIP platforms, IPPBX systems and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH, BroadSoft and the VOS VoIP operating platform.

Technical Specifications:

Software & Platform:

Linux OS

Key features

Physical interfaces (Capacity & Ethernet interfaces)

8 FXS with RJ11

1*WAN, 10/100/1000Mbps, RJ-45

1*LAN, 10/100/1000Mbps, RJ-45

Voice & Fax

G.711A/U, G.723.1, G.729A, G.722, iLBC, OPUS, AMR and AMR-WB

Comfort noise generation (CNG)

Modem/POS

Adaptive (dynamic) jitter buffer

Programmable gain control

DTMF mode: Signal/RFC2833/INBAND

T.38/Pass-through

Echo cancellation (G.168), up to 128ms

Call features

Call waiting

Blind transfer

Attended transfer

Call forwarding on busy

Call forwarding on no answer

Unconditional call forwarding

Hotline (warm/immediate)

Message waiting indicator

SlP registration to different servers

Call waiting

Do not disturb

Three-party conference

Speed dial

FXS

Connector: RJ11

Dialing mode: DTMF and pulse

Pulse: 10 and 20 PPS

Caller ID: DTMF/FSK CLI presentation

Maximum cable length: 3 km

Programmable call progress tone with reversed polarity

Software features

Hunt group

Web ACL

Telnet ACL

Action URL

PPPoE

OpenVPN

Digitmap

Prefix-based routing rules

Caller/called number manipulation

VEX (Advanced Peer To Peer Call)

VOIP (Protocol)

SIP v2.0 (UDP/TCP), RFC3261

SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

RTP/RTCP, RFC2198, RFC1889

IPv4 and IPv6

Outbound proxy

RFC2806 TEL URI

RFC3581 NAT, rport

VLAN 802.1P/802.1Q

RFC4028 Session Timer

DNS SRV/A Query/NATPR Query

NAT: STUN, static/dynamic NAT

Maintenance

SNMP v1/v2/v3

Automatic provisioning

Web configuration

Sauvegarde/Restauration

Firmware update via Web

CDR

TR069

IPoE

Syslog (Emerg, alert, critical, error, warning, notice, info, debug)

Ping/Tracert test

Network capture

NTP/Daylight saving time

Local lVR maintenance

Cloud-based management

Specifications

OpenVox iAG802 Analog VoIP Gateway — Specifications
SpecificationValue
Technical specifications
Ports8 FXS ports /
Ethernet ports2 * 10/100/1000Mbps Ports
Weight400g
Dimensions170*98*26mm
Universal power supplyDC 12V/2A
Maximum power12W
Operating temperature0°C ~ 50°C
Operating humidity range10% ~ 90% NON-CONDENSING
Storage temperature range-20°C ~ 70°C
Short/long ring load2 REN, up to 3km over 24 AWG line
CertificationCE & FCC
