OpenVox UC120P IPPBX
Designed for SMEs and SOHO; Compact and lightweight; Offers FXS, FXO, GSM/LTE;
- UC120P-1O1S1L /Product model
- 1 /FXO
- 1 /FXS
Product details
OpenVox UC120P Series IPPBX is a new-generation unified communications terminal device designed for SME and SOHO users. It is compact and lightweight, and offers the following voice interfaces: FXS, FXO, GSM/LTE. It integrates functions such as IP telephony, voice and recording. It is compatible with multiple service platforms and terminals and can seamlessly connect to VoIP networks, traditional telephone networks (PSTN) and mobile networks (PLMN), providing diversified converged communication solutions. UC120P IPPBX also features fast installation, easy deployment and high reliability, bringing a new mobile office and communication experience to businesses.
Performance
Convergence of phone calls, recordings, messages and instant messages
Plug and Play IP phone;
Voice network for headquarters and branches
Business communication between mobile phones and extensions anytime, anywhere
Open programming interface (API)
Compatible with IMS and Asterisk service platforms
*N: Not supported; *The UC120P-1S1O Series uses Line1 as the FXS port and Line2 as the FXO port by default.
Key features
Physical Specifications
FXS: 1
FXO: 1
LTE/GSM: 1

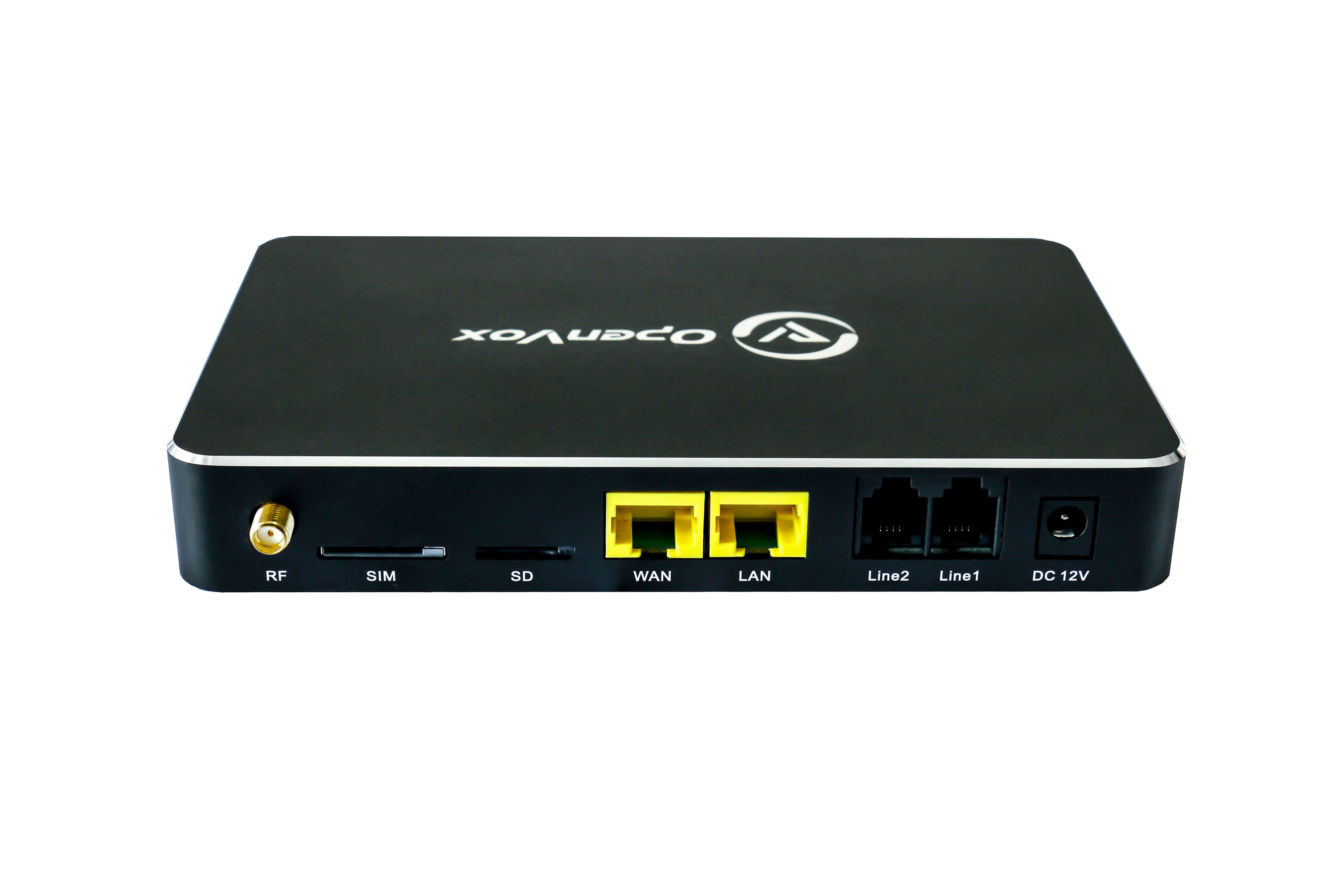

Network interface: 2 10/100 Base-T RJ45
FXS
Interface type: RJ11
Caller ID signaling: BELL, V23, V23_JP, DTMF
Off-hook detection: Off-hook, On-hook, Busy Tone
Polarity reversal
Off-hook detection
High-voltage FXS interface Spotlight
FXO
Interface type: RJ11
Caller ID detection: FSK, DTMF
Reverse polarity detection
Delayed Off-hook response
Busy Tone detection
No current off-hook detection
Mobile function
GSM:900/1800MHz
LTE FDD: B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
PBX Features
Ring group / Route group
Calling number/Called number transformation
Call duration limit / Call failure redirection
Caller ID number acquisition / DID acquisition
Other party ID / Remote management
P-Asserted-Identity/P-Preferred-Identity
Routing based on user privilege level/time condition/caller ID number
Time condition
Destination-based routing/source routing
Dial plan
Fallback Routing
FXO impedance matching
Customizable multilingual IVR
Auto-attendant function
Local CDR storage
SIP forking (registering multiple SIP devices with the same SIP account) / Custom SIP fields
WebPhone (WebRTC)
Voice Features
VoIP protocols: SIP over UDP/TCP/TLS, SDP, RTP/SRTP
Supported codecs: G.711a/μ law, G.729A, GSM, G.726, G.722, iLBC, OPUS, VP8, H264
VPN: N2N and OpenVPN
Silence suppression
Comfort Noise Generator (CNG)
Voice activity detection (VAD)
Echo cancellation (G.168), maximum 128 ms
Adaptive dynamic buffer
Adjustable gain control / Automatic gain control
AutoCLIP routing
Automatic announcement with outbound call
MQTT API
OPUS/VP8 HD voice/video call
TOS/QOS support for SIP and RTP
Call progress tones: Ring Tone, Ringback Tone, Busy Tone
NAT Traversal support
Supports HD broadcasting (automatic broadcast, scheduled broadcast)
DTMF mode: RFC2833/Signal/Inband
Custom signal tones
Intra-group support
Hotline
Do Not Disturb (DND)
Three-party conference
T38 Fax
Call forwarding (Unconditional/No Answer/Busy/Unreachable)
Hold/Call Waiting/Transfer/Queue/Spy
Authorization control/Broadcast control
Secretary extension
High availability (Hot Standby)
Address book/Announcement/Morning call (Wake-up)
Hotel interface (minibar, alarm, room cleaning, extension privilege settings)
PBX license control
Management & Maintenance
Simple and convenient configuration via Web GUI
Supports backup and download of configuration files
Supports Chinese and English pages
Firmware update via HTTP
Password change via Web
CDR query & export
Syslog query & export
Ping and Traceroute test
Traffic statistics: TCP, UDP, RTP
Network capture/Network quality test
Automatic time synchronization
Specifications
| Specification | Value |
|---|---|
| Product model | UC120P-1O1S1L / |
| FXO | 1 / |
| FXS | 1 / |
| GSM | N |
| SIP Registrations | 100 / |
| SIP Trunks | 30 |
| Concurrency | 15 |
| Weight | 0.5kg |
| Power supply | 12VDC， ≥1.5A |
| Maximum power consumption | 12W |
| Dimensions (LxPxH) | 160X105X24 mm |
| WAN (LAN1 Port) | 10/100 Base-T RJ45 |
| LAN (LAN2 Port) | 10/100 Base-T RJ45 |
| Micro SD card slot | 1 |
| Operating temperature | 0℃ ~ 50℃ |
| Operating humidity | 10 % ~ 90 % Non-condensing |
| Non-condensing | -20℃ ~ 80℃ |
