X204 Series
Supports 3 types of interfaces: FXO/FXS, BRI, and T1/E1/J1; each interface accesses 2 analog lines; supports 4 simultaneous voice calls over 2 ISDN BRI lines.
Product details

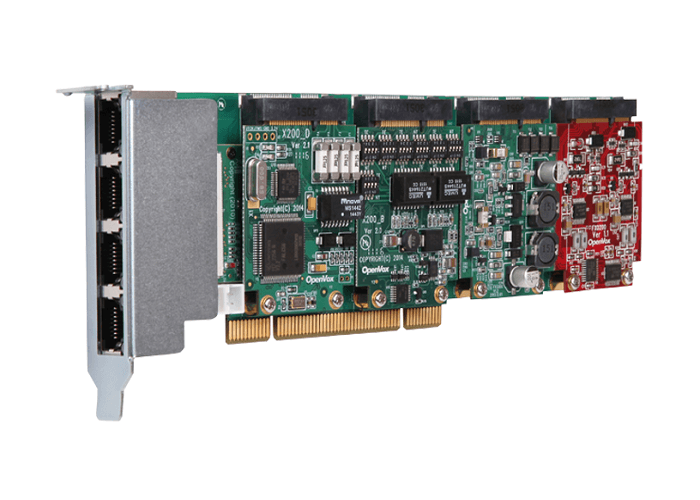

The OpenVox X204 hybrid telephony card is a compliant PCI 2.2 card that supports 3 types of interfaces: FXO/FXS, BRI, and T1/E1/J1. The X204 series allows users to select the number of FXO/FXS modules according to their needs. Without a separate channel combiner or additional access gateway, each interface accesses 2 analog lines via a junction box. The BRI ports can be individually configured in TE or NT mode using jumpers. It can provide 4 simultaneous voice calls over 2 ISDN BRI lines, turning your legacy ISDN BRI equipment into powerful Voice over IP devices and providing a smooth migration path from ISDN technology to the world of Voice over IP. The T1/E1/J1 interface is selectable by card or by port, and supports industry-standard telephony and data protocols, including the ISDN Primary Rate protocol families (American and Euro standard) for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Line-side and trunk-side interfaces are supported.
The X204 series card works perfectly with open-source Asterisk® and enables users to fully benefit from Asterisk®'s high performance and rich features.
Target applications
Channel bank replacement / alternative
SOHO (Small Office Home Office) applications
SMB (Small and Medium Business) applications
Gateway termination to analog phones/line
High-performance ISDN interface cards
ISDN PABX for BRI
ISDN LAN routers for BRI
Least-cost ISDN routers for BRI
ISDN test equipment for BRI
Voice-over Internet Protocol (VoIP) services
Complex IVR trees
“Meet-Me” Bridge Conferences
Calling card platforms
VoIP gateways (SIP and IAX2 support)
Legacy PBX/IVR services
Voice/data router (replaces expensive routers)
PRI/SS7/R2 compatibility – network or CPE
Technical specifications
Supports PCI Express 1.0 or higher
4 RJ-45 interfaces on a single PCI bracket
Power dissipation: 18,25 W maximum
Operating temperature: 0 ~ 50 °C
Storage temperature: -40 ~ 125 °C
Dimensions : 200 mm * 78 mm
Weight : 136 g (with four modules)
Key features
T1/E1/J1 features:
Industry-first adjustable interrupt routing design
Interrupt frequency adjustment
Compatible with all commercially available motherboards
Single-port T1/E1/J1 with PCI interface for high-performance voice and data applications
BRI features:
Up to 4 simultaneous voice calls on 2 ISDN BRI lines (per PCIe slot)
Mix TE and NT modes as needed
TE/CPE mode: the BRI or PRI module can be used as a synchronized clock receiver/transmitter, and the clock source line does not need to be connected to the card
FXO/FXS features:
Caller ID and call waiting
ADSI phones
Loopstart signaling support
Adjustable interrupt routing design
Interrupt frequency adjustment
Up to 2 simultaneous PSTN calls (per FXO200M module)
Compatible with all commercially available motherboards
Warranty:
3-month no-questions-asked return policy
5-year warranty
Specifications
See the manufacturer description and linked documentation for product information. No specification table is published on the captured product webpage.
